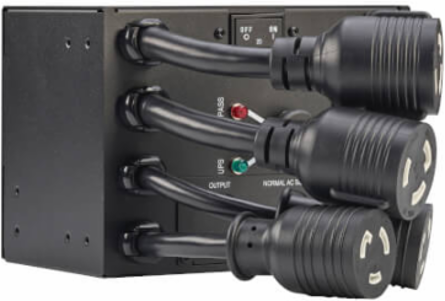

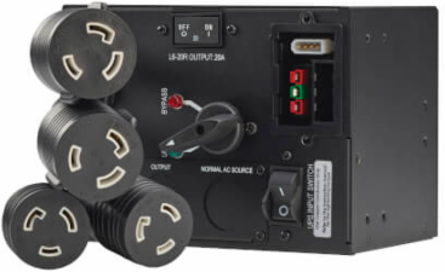

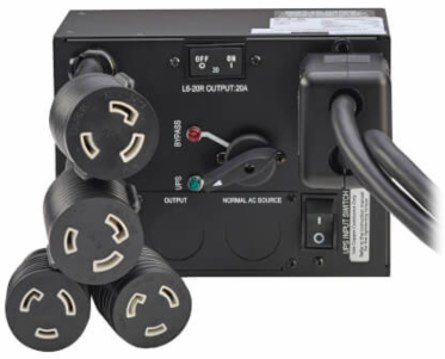

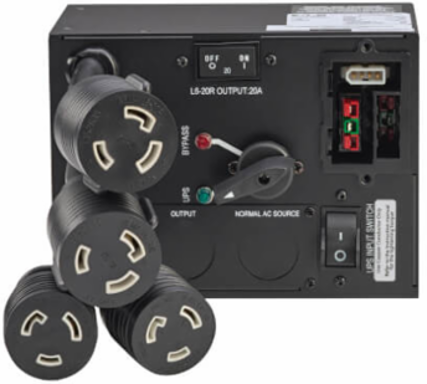

Tripp Lite SUPDMBP6K Maintenance Bypass, 5-6kVA SmartOnline UPS, 2 L6-30R and 2 L6-20R Outlets, 0U
- MPN: SUPDMBP6K
- UPC: 037332282859
- PPN: TRP-SUPDMBP6K
CAD
$1077.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline Maintenance Bypass for Select 5kVA to 6kVA SmartOnline UPS Systems, 2 L6-30R and 2 L6-20R Outlets, 0U, TAA
Features

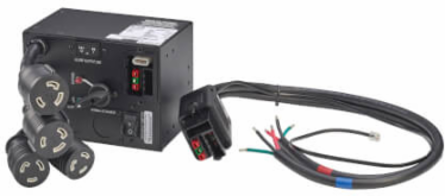

- SUPDMBP6K Maintenance Bypass
- Input/output UPS cable set
- (2) Cable glands
- Mounting hardware
- Quick start guide
Documentation & Downloads
Specifications
Performance
| Voltage Compatibility | 200; 208; 220; 230; 240 |
|---|---|
| Frequency Compatibility | 50 / 60 Hz |
| Input Amp | 25 |
| Storage Temperature Range | -15° to 60°C (5° to 140°F) |
| Output Nominal Voltage | 200/208/220/230/240 VAC |
|---|---|
| Output Circuit Breakers | 20A, double pole, branch rated, 250V |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
Material
| Material of Construction | Metal |
|---|
Dimensions
| UPS Type | On-Line |
|---|---|
| Output Receptacles | (1) Hardwire; (2) L6-20R; (2) L6-30R |
| LED Indicators | Green = UPS; Red = Bypass |
| Unit Dimensions | 5.130 x 5.600 x 6.970 |
| UPS Input Connection Type | Hardwire; L6-30P |
|---|---|
| Switches | Manual bypass switch, make-before-break, two position rotary switch (UPS and Bypass); Normal AC Source Input switch (line, load) |
| Form Factors Supported | Rear Rackmount; Tower; Wallmount |
| Unit Weight | 5.51 |
Reference
| Product Warranty Period | 2-year limited warranty |
|---|
