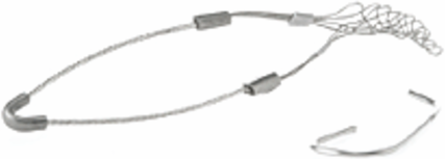

Woodhead 36681 Fiber Optic Support Grips, 3 Inch Bale Length, Cable Diameter 5.84-8.13mm, 300 lbs Break Strength
- MPN: 36681
- PPN: WOD-36681
CAD
$58.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fiber Optic Support Grips, 3 Inch Bale Length, Cable Diameter 5.84-8.13mm, 300 lbs Break Strength
Documentation & Downloads
Specifications
Material Info
- Engineering Number
- 36681
Reference - Drawing Numbers
- Sales Drawing
- SD-130094-008
Agency Certification
- CSA
- LR32159
Physical
- Thread Size
- N/A
- Gender
- N/A
- Number of Holes
- N/A
- Body Style
- Straight
- Approximate Break Strength
- 136.08kg (300 lbs)
- Bale Length
- 0.076m (3.00")
Mesh Length0.064m (2.50")
Cable Diameter5.84-8.13mm (.230-.320")
Color - GrommetOrange
Material - BodyN/A
Material - GripNon-magnetic Tin Bronze Wire
General
- UPC
- 78678836681
- Product Family
- Cable Grips
- Eye Type
- Single
- Product Name
- Fiber Optic
- Product Literature Order No
- 987650-8066
OverviewSupport Grips
O-RingN/A
Series130094
TypeSupport Grip
