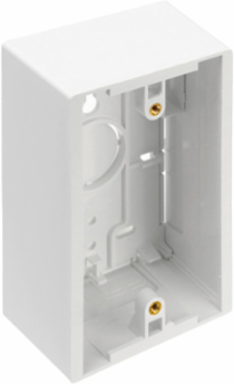

Leviton 42777-1WA Surface-Mount Back Box, Single-Gang, 1.89 Inch Depth, White
- MPN: 42777-1WA
- UPC: 078477963593
- PPN: LEV-42777-1WA
CAD
$11.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single and dual-gang back boxes are used for surface-mount installation of low-voltage connectivity in hard-wall or open-office environments. They are compatible with all Leviton QUICKPORT and MOS flush-mount wallplates, and accommodate various raceway types. They are available in two depths (1.45 and 1.89 inches) and in four colors (white, ivory, gray, and black)
Features
- Back boxes have tie-wrap anchors at each inside raceway entry point
- Dual-gang back box has four fiber storage tie-wrap anchors located on base surface
- Screws and tape provided for mounting; optional magnet retention (41030-SMJ)
- Compatible with all Leviton multimedia wallplates, including QuickPort wallplates
- Two-piece construction
- Designed with rear and side cable access breakouts
- Larger breakouts in single-gang bases accommodate a larger cable bend radius
- Available in four colors (white, ivory, gray, and black)
- Single-gang base can be mounted over an existing single-gang handy box or low voltage bracket.
- Dual-gang base can be mounted over a single-gang or a dual-gang box with appropriate single-gang or dual-gang reducer
Documentation & Downloads
Specifications
Additional
- Type
- Surface Mount Back Boxes
- Dimensions
- 4.72 in H x 2.96 in W x 1.89 in D
- Mounting
- Screws, adhesive tape, optional magnets
- Compliance
- UL Listed 1863, CSA Certified, ANSI/TIA-568.0-D
- Country of Origin
- Mexico
- Gang Size
- Single-Gang
- Tie-Wrap Anchors
- Included at each inside raceway entry point
Depth1.89 in
MaterialFire-retardant plastic rated 94V-0
ConstructionTwo-piece
ColorWhite
RoHS CompliantFalse
Cable AccessRear and side cable access breakouts
