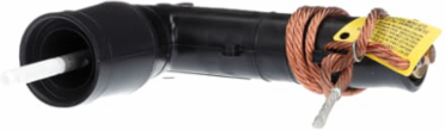

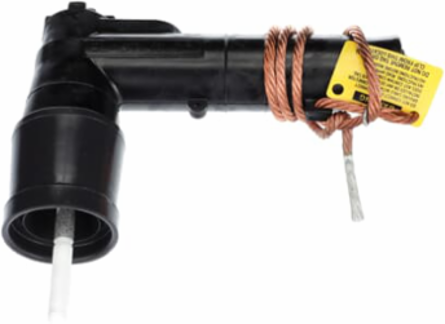

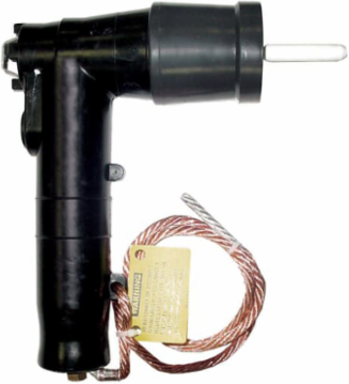

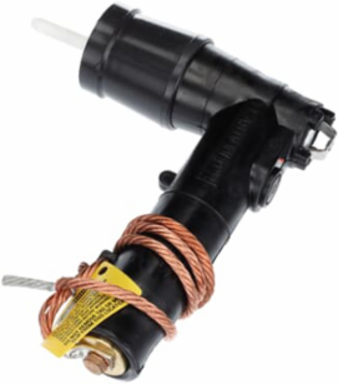

Thomas & Betts 273ESA-18 SURGE ELBOW ARRESTER 25KV
- MPN: 273ESA-18
- UPC: 783786627844
- PPN: T-B-273ESA-18
- UNSPSC: 39121634
CAD
$732.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Shielded Surge Arrester, ESA Elbow Surge Arrester, 25kV, MCOV KV RMS is 15.30
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4988 >> Surge arrestor |
|---|
Additional Information
| Application | Underground Medium Voltage Applications |
|---|---|
| Connection Type | Push-In |
| Effective Date | 19980115 |
| Material | Housing - EPDM Rubber |
| Product Name | LIGHTNING ARRESTER >1000V |
| Size | Length to Center of Bushing 9.36 inch, Width 7.42 inch |
| Standards | ANSI/IEEE Standard 386, IEEE C62.11-2012 |
| Brand / Label | Elastimold |
|---|---|
| Current Rating | 200 A |
| Insulation Material | EPDM Rubber |
| Process Temperature Rating | -40 to +65 °C |
| Product Type | Elbow Surge Arrestor |
| Special Functions | Equipped with a Fully Rated 200 Amp Switching and Fault-Close Loadbreak Bushing |
| Voltage Rating | 25 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
