Hubbell Wiring Device-Kellems

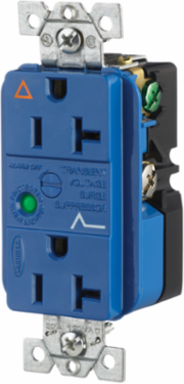

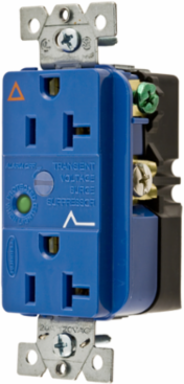

Hubbell Wiring Device-Kellems IG5362SA Surge Protective Duplex Receptacle, 20A 125V, 5-20R, Isolated Ground, Blue

Surge Protective Duplex Receptacle, 20A 125V, 5-20R, Isolated Ground, Blue
Surge Protective Duplex Receptacle, 20A 125V, 5-20R, Isolated Ground, Blue
  • MPN: IG5362SA
  • UPC: 783585060873
  • PPN: HBL-IG5362SA
  • UNSPSC: 39121610

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$273.18/ EA

Description

Surge Protective Devices, SPIKESHIELD IG TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Blue

Features

  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Power-on indicator light verifies that power is available
  • Alert alarm sounds when surge protection is no longer functioning
  • Isolated Ground

Specifications

Amperage
20 A
NEMA Rating
5-20R
Grounding
Isolated Ground
Frequency Rating
60 Hz
Transient Suppression
240 Joules, 15000 A Peak Energy/Current (10x100 μs / 8x20 μs)
Width
2.2 in
Material
Composite
Standard
CSA Certified C22.2 No. 42; UL Listed 498
Color
Blue
Voltage125 V
Outlet Type5-20R Straight Blade
PhaseSingle Phase
Response Time5 ns
Operating Temperature32°F to 140°F (0°C to 60°C)
TypeDuplex
Indicator TypeLED and Audible Alarm
FlammabilityUL 94V-2
Country of OriginCN

Downloads
