Ilsco

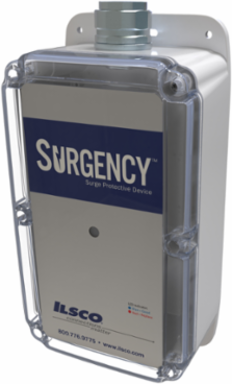

Ilsco XE-100-3N6X-A Surgency Surge Protection, Commercial & Industrial, Lead Wire Size 10, 3 Phase, Delta System, 100kA Surge Current, 600 V, Indicator LED, UL, CSA

Surgency Surge Protection, Commercial & Industrial, Lead Wire Size 10, 3 Phase, Delta System, 100kA Surge Current, 600 V, Indicator LED, UL, CSA
  • MPN: XE-100-3N6X-A
  • UPC: 0783669011234
  • PPN: ILC-XE-100-3N6X-A

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2714.37/ EA

Specifications

Dimensions

Height BX (IN)
4
Length (mm)
133.223
Width BX (IN)
6
Height (mm)268.4526
Weight BX (LB)4.25
Width (mm)83.7184

Testing Standards

CSA Standard
C22.2 No. 269.1-14
UL Control Number
E315947
UL File Number
E484255
Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS SpecificationUL/cUL 1449 Listed

Additional Class Attributes

AC Frequency
50/60 Hz
Type Of Indicators
Blue indicator LED
Mounting MethodMountable or flush mountable with flush mount kit
Warranty10 Year

Surge Specifications

Dry relaying contact
No
Nominal Discharge Current
20 kA
Phase
3
Surge Current Rating
100 kA
UL Voltage Protection Rating L-G
3000
Electrical Noise FilterNo
OutletNone
Short Circuit Current Rating (SCCR)200 kA
SystemDelta
UL Voltage Protection Rating L-L3000

Material and Finish

Material
Polycarbonate

Conductor Ranges

Conduit Hub Size
3/4
Lead Wire Size10 AWG

Additional Technical Specifications

Nominal Voltage
600 V

General

Bag Quantity
1
NEMA Code
0-000-1
UPC Code
78366901123
Carton Quantity DescriptionSTD PACK QTY 1
ULCSA Type1

Specifications

Height
10.569 in | 268.4526 mm
Weight
0.962450665133076 lbs
Length5.245 in | 133.223 mm
Width3.296 in | 83.7184 mm

Environment and Temperature

Environmental Conditions
Enclosure rated to NEMA/UL Type 1/2/3/3R/3X/4/4X
Operating Temperature-40°C to 65°C
