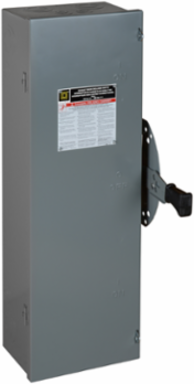

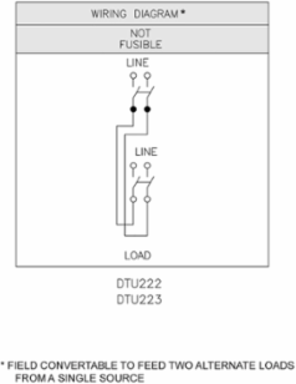

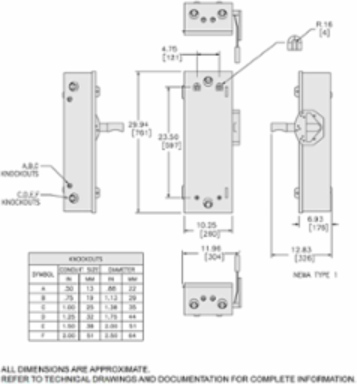

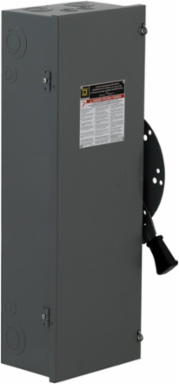

Square D DTU223 Double Throw Safety Switch, 100A, 240V AC, NEMA 1, 2 Pole
- MPN: DTU223
- UPC: 785901308645
- PPN: SCH-DTU223
CAD
$995.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 2 wire configuration with 2 poles. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth6.93 in
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R, J or T
- Carbon Footprint Of The Distribution Phase [A4]
- 38.38609713136798, 38 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0869488450736401, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 96 kg CO2 eq., 96.33955321636661
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1920
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper
- Disconnector Device Type
- non-fusible disconnect switch
- Number Of Poles
- 2
- Product Or Component Type
- Double Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2503028EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 90
- Width Nominal
- 11.96 in
- [Ue] Rated Operational Voltage
- 240 V AC250 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509045
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque35-35 lbf.in 2.06-5.26 mm² (14 AWG...1/0 AWG), 40-40 lbf.in 8.37-8.37 mm² (8 AWG)45-45 lbf.in 13.30-53.48 mm² (8 AWG), 50-50 lbf.in 26.67-53.48 mm² (6 AWG...4 AWG)
Carbon Footprint Of The End-of-life Phase [C1 To C4]47 kg CO2 eq., 47.264005833178246
Carbon Footprint Of The Manufacturing Phase [A1 To A3]99 kg CO2 eq., 98.60561646536362
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Compositionnone
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint281 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh215.496
Energy Model - Installation [A5]Electricity Mix; Europe; RER
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal29.94 in
Certificate AgencyUL Listed
Short-circuit Current10 kA H or K200 kA R, J or T
Package Weight(Lbs)19.958 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 280.6822214913501
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2503028EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503028EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Double Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
