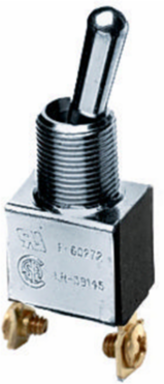

Hubbell Wiring Device-Kellems HBL118 Commercial Grade Bat Handle Switch 10A 240V, Panel Mount, Single Pole
- MPN: HBL118
- UPC: 783585016733
- PPN: HBL-HBL118
- UNSPSC: 39122239
CAD
$24.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Single Throw 10A 240V /15A 125V, Wire Leads,
Features
- Nickel Plated for Corrosion Resistance
Specifications
Key Specifications
- Country of Origin
- Canada
- Dimensions
- 1.78 in x 0.67 in x 0.56 in
- Industry Standard(s)
- UL Listed
- Mounting Method
- Panel Mount
- Amperage Rating
- 10/15 A
- Number of Poles
- Single Pole
- Size
- 1.78 in x 0.67 in x 0.56 in
- Type
- General Purpose
- Weight
- 0.05 lb.
- Engineering Drawing 1 Display Text
- HBL118 AutoCAD Drawing
- Connectivity
- Screw Terminals
- Style
- Screw Terminal
- Description - Invoice
- PANEL SW, SPST, TERM SCREWS
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 1.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating10/15 A
Height0.56 in
Length1.78 in
PerformanceEnvironmental - Operating Temperatures - Max Continuous- 75 °C, Minimum -40 °C Without Impact
ColorMetallic
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating240/120 VAC
Width0.67 in
ActionSPST
Number Of PolesSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number118
SeriesSingle Pole/Single Throw
BOX SIZE4.000x4.000x4.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585016733
Case - Total Units20 EA
Each - Pack DescriptionEach
NAICS Code3359315102
Certifications
- EU RoHS Indicator
- No
