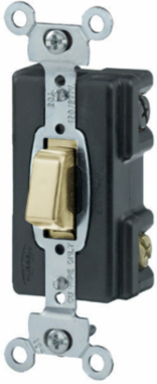

Hubbell Wiring Device-Kellems HBL1287I Illuminated Industrial Grade Switch, 20A 120VAC, Single Pole, Ivory
- MPN: HBL1287I
- UPC: 783585016917
- PPN: HBL-HBL1287I
- UNSPSC: 39122216
CAD
$140.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Illumianted Industrial Grade, PresSwitch, General Purpose AC, Single Pole, 20A 120/277V AC, Screw Terminals , Ivory
Features
- Large brass binding head screws with deep slots
- Thread cleaning captive mounting screw
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.5 in x 1.45 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 20 A
- Indicator
- Light On with Load Off
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating Description
- 120 VAC
- Width
- 1.5 in
- Connectivity
- Side Wired Only
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SP PRESSSWITCH, 20A, IL, IV
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Series
- Illuminated
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585016917
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359315101
Current / Amperage Rating20 A
Height1.45 in
Length3.28 in
Temperature Rise - Max.30°C maximum at rated current
ColorIvory
Number of PolesSingle Pole
Size3.28 in x 1.5 in x 1.45 in
Voltage Rating120 VAC
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL1287I AutoCAD Drawing
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number1287I
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.000 lb.
Lowest Level UOMEach
