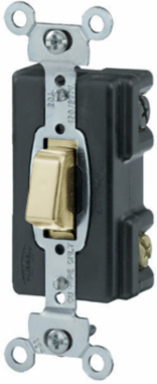

Hubbell Wiring Device-Kellems HBL1284I Industrial Grade Four Way Switch, 20A 120-277V AC, 1.5 Inch x 1.45 Inch, Ivory
- MPN: HBL1284I
- UPC: 783585016900
- PPN: HBL-HBL1284I
- UNSPSC: 39122216
CAD
$198.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Four Way, 20A 120/277V AC, Screw Terminals, Ivory
Features
- Large brass binding head screws with deep slots
- Thread cleaning captive mounting screw
- Strip gauge for accurate wiring
Specifications
Additional
- Amperage Rating
- 20 A
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Operating Temperature
- -40 C to 75 C continuous
- Length
- 3.28 in
- Height
- 1.45 in
- Wire Size
- #14 AWG to #10 AWG copper solid and stranded
- Material - Toggle
- Nylon
- Material - Base
- Thermoset
- Material - Terminal Screws
- Brass
- Flammability Rating
- UL 94V-2
- Color
- Ivory
- Action
- DPDT
Voltage Rating120-277 VAC
Number of PolesDouble Pole
Dimensions3.28 in x 1.5 in x 1.45 in
Width1.5 in
Weight0.2 lb.
ConnectivitySide Wired Only
Material - TopThermoset
Material - ContactsSilver Alloy
Material - Ground ScrewBrass (Green)
ComplianceUL Listed, RoHS Compliant
Country of OriginPR
