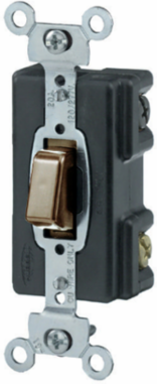

Hubbell Wiring Device-Kellems HBL1281MO Industrial Grade Momentary Open Single Pole Switch, 20A 120-277V AC, 3.28 x 1.5 x 1.45 Inch, Brown
- MPN: HBL1281MO
- UPC: 783585016849
- PPN: HBL-HBL1281MO
- UNSPSC: 39122216
CAD
$178.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, PresSwitch, General Purpose AC, Momentary Open Single Pole, 20A 120/277V AC, Screw Terminals, Brown
Features
- Large brass binding head screws with deep slots
- Thread cleaning captive mounting screw
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL1281MO AutoCAD Drawing
- Current / Amperage Rating
- 20 A
- Height
- 1.45 in
- Length
- 3.28 in
- Temperature Rise - Max.
- 30°C maximum at rated current
- Color
- Brown
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- Fed. Spec. W-S-896
- Voltage Rating Description
- 120-277 VAC
- Width
- 1.5 in
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 1281MO
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.400 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
Dimensions3.28 in x 1.5 in x 1.45 in
Industry Standard(s)Fed. Spec. W-S-896
PerformanceElectrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Amperage Rating20 A
Number of PolesSingle Pole
Size3.28 in x 1.5 in x 1.45 in
Voltage Rating120-277 VAC
Weight0.2 lb.
ConnectivitySide Wired Only
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSP PRESSSWITCH, 20A, MOM NO, BR
Harmonization Code8536509999
MSDS FlagNo
Sub Class CodeA16A240
SeriesMomentary Contact
BOX SIZE3.700x10.000x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585016849
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet Height46.300 in
Pallet Weight622.400 lb.
NAICS Code3359315101
