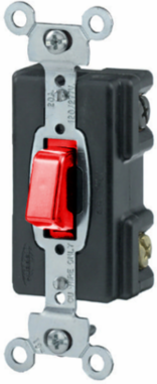

Hubbell Wiring Device-Kellems HBL1298 Pilot Lighted AC Switch, 20A 120/277V, Three Way, Red, 3.28 Inch x 1.5 Inch x 1.45 Inch
- MPN: HBL1298
- UPC: 783585016948
- PPN: HBL-HBL1298
- UNSPSC: 39122216
CAD
$251.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Pilot Lighted Industrial Grade, PresSwitch, General Purpose AC, Three Way, 20A 120/277V AC, Screw Terminals, Red
Features
- Large brass binding head screws with deep slots
- Thread cleaning captive mounting screw
- Strip gauge for accurate wiring
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- Single Pole
- Temperature Rise
- 30C maximum at rated current
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Dimensions
- 3.28 in x 1.5 in x 1.45 in
- Wire Size
- #14 AWG to #10 AWG solid and stranded copper wire only
- Material - Top & Base
- Thermoset
- Contacts Material
- Silver Alloy
- Ground Screw Material
- Brass (Green)
- Country of Origin
- US
- Standard
- Fed. Spec. W-S-896
Voltage120 VAC
StyleThree Way
Operating Temperature-40C to 75C continuous
ActionSPDT
Weight0.2 lb.
ConnectivitySide Wired Only
Toggle MaterialNylon
Terminal Screws MaterialBrass
FlammabilityUL 94V-2
RoHS ComplianceEU RoHS Compliant
ColorRed
