Hubbell Premise Wiring

Hubbell Premise Wiring S1SP SystemOne Sub-Plate Dual Openings 5.36x5.36 Inch Black Aluminum

SystemOne Sub-Plate Dual Openings 5.36x5.36 Inch Black Aluminum
SystemOne Sub-Plate Dual Openings 5.36x5.36 Inch Black Aluminum
SystemOne Sub-Plate Dual Openings 5.36x5.36 Inch Black Aluminum
SystemOne Sub-Plate Dual Openings 5.36x5.36 Inch Black Aluminum
  • MPN: S1SP
  • UPC: 783585371153
  • PPN: HBL-S1SP
  • UNSPSC: 39121307

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$96.77/ EA

Description

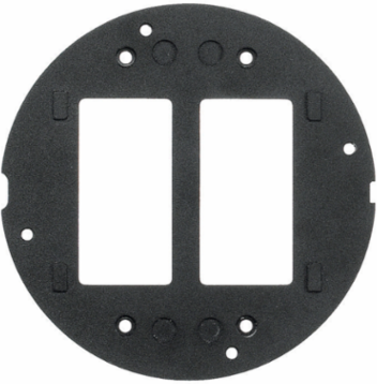

In-Floor Delivery Systems, SystemOne, Sub-Plate, Dual StyleLine Decorator Openings, Black

Features

  • Durable Cast Aluminum Construction
  • Black Powder Coat Finish
  • Large Capacity and Multi-Service Applications
  • Open System Subplates for Maximum Data Flexibility
  • Standard Product; Cast Aluminum; Black Powder Paint Finish

Specifications

Specifications

Core Hole
4 Inch
Cover Shape
Round
Each - Width
5.700 in
Mounting Method
To Fitting in Floor
Application
Flush SystemOne Installation
Height
2.31 in
Number of Outlet
Dual StyleLine Decorator Openings
Special Features
Standard Product; Cast Aluminum; Black Powder Paint Finish
Type
Sub Plate
Number Of Outlets
Dual StyleLine Decorator Openings
Freight Class Code
06168002
Image Actual Or Representative
A
Material
Aluminum
BOX SIZE
2.500x5.600x5.700 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
00783585371153
Case Weight
3.672 lb.
Pallet Height
42.600 in
Pallet Weight
283.800 lb.
Country of OriginCN
Dimensions5.36 in x 5.36 in x 2.31 in
Industry Standard(s)cULus
Plate StyleData/Power
ColorBlack
Length5.36 in
Size5.36 in x 5.36 in x 2.31 in
StandardcULus
Width5.36 in
Description - InvoiceSUBPLATE, 2 STYLE DEV., SYS 1
Harmonization Code7616995190
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Pallet - GTIN - Package70783585371152
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Contact Manufacturer

Downloads
