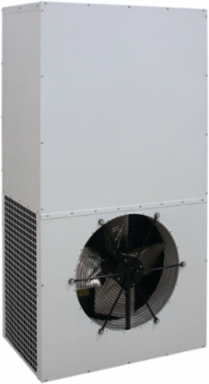

nVent Hoffman T706046G460 T-Series Large Capacity Outdoor without Heat T70, 60000BTU 460V 3Phase, Lt Gray, Steel
- MPN: T706046G460
- UPC: 783510624972
- PPN: HOF-T706046G460
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
T-Series Large Capacity Acs cool high heat loads and designed to blend into surroundings. This T-Series Large Capacity Outdoor without Heat T70, T706046G460 item is rated 60000BTU 460V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R-407C refrigerant
- Models for 230 and 460 VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal cover for rugged factory and outdoor environments
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 911
- Nominal Voltage
- 460
- Number of Phases
- 3
- Nominal Capacity Watts
- 17,595
- Max Current
- 16
- Product Family
- T-Series
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Weight
- 557
Height (H)1,772
Depth (D)583
Remote Access ControlNo
Nominal Capacity Btu/h60,000
Operating Temperature-40
Protection RatingNEMA Type 4
MaterialMild Steel
ColorLight Gray
Thickness (T)1.024
