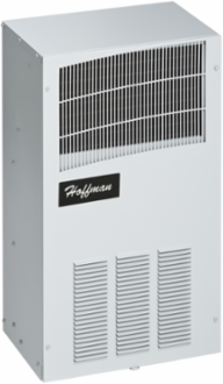

nVent Hoffman T290416G100 T-Series Mid-Size Outdoor without Heat T29, 4000BTU 115V, Lt Gray, Steel
- MPN: T290416G100
- UPC: 783510162962
- PPN: HOF-T290416G100
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
T-Series Mid-Size ACs cool a range of heat loads and designed to blend into surroundings. This T-Series Mid-Size Outdoor without Heat T29, T290416G100 item is rated 4000BTU 115V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 432
- Nominal Voltage
- 115
- Number of Phases
- 1
- Nominal Capacity Watts
- 1,172
- Protection Rating
- NEMA Type 4
- Material
- Mild Steel
- Color Code
- RAL 7035
- NEMA Rating
- 4 Watertight
- Sub Brand
- T-Series
- Voltage Rating
- 115 VAC
- Amperage Rating
- 12.8 A
- Frequency Rating
- 50/60 Hz
- Housing Material
- Mild Steel
- Color
- Lt Gray
Height (H)737
Depth (D)287
Remote Access ControlNo
Nominal Capacity Btu/h4,000
Max Current12.8
Product FamilyT-Series
FinishPowder Coated
Thickness (T)1.21
Weight99
ModelT29
BTU Rating4,000
Power1172 W
Phase1 Ph
Operating Temperature131 deg F
