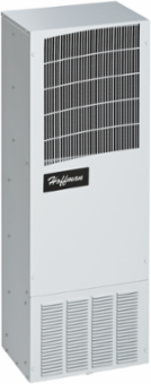

Nvent Hoffman T430846G403 T-Series Mid-Size Outdoor with Heat T43, 8000BTU 460V, Lt Gray, Steel
Nvent Hoffman T430846G403 T-Series Mid-Size Outdoor with Heat T43, 8000BTU 460V, Lt Gray, Steel
- MPN: T430846G403
- UPC: 783510233518
- PPN: HOF-T430846G403
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
T-Series Mid-Size ACs cool a range of heat loads and designed to blend into surroundings. This T-Series Mid-Size Outdoor with Heat T43, T430846G403 item is rated 8000BTU 460V with a material of Steel colored Lt Gray.
Features
- Compact footprint to minimize real estate and maximize capacity
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R134A or R-407C refrigerant
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal or stainless steel cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Exterior and fully recessed mounting options on many models
- Standard Outdoor Air Conditioner models include: telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 400
- Nominal Voltage
- 460
- Number of Phases
- 1
- Nominal Capacity Watts
- 2,403
- Max Current
- 3.1
- Product Family
- T-Series
- Finish
- Powder Coated
- Thickness (T)
- 1.21
- Weight
- 160
- Model
- T43
Height (H)1,092
Depth (D)277
Remote Access ControlNo
Nominal Capacity Btu/h8,200
Operating Temperature-40
Protection RatingNEMA Type 4
MaterialMild Steel
Color CodeRAL 7035
NEMA Rating4 Watertight
Sub BrandT-Series
ColorGray
