nVent Hoffman T501226G150 Outdoor Model with Heat Pkg. - T501226G150
- MPN: T501226G150
- UPC: 783510225223
- PPN: HOF-T501226G150
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

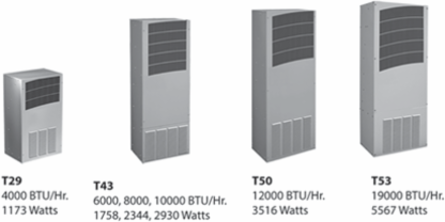

Outdoor Model with Heat Pkg. - T501226G150
Features
- Stock models equipped with head pressure control for low-ambient operation, compressor heater, coated condenser coil, malfunction switch, thermostat and heater package
- R134A or R-407C earth-friendly refrigerant
- Models for 115, 230 and 460 VAC power input
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Exterior and fully recessed mounting options on many models
- Compact footprint to minimize real estate and maximize capacity
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Painted galvanized sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Mounting hardware, gaskets and user manual furnished with the unit
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models also include:
- Telcordia GR-487 capable
- Thermostat
- Corrosion-resistant components
- Malfunction switch
- Compressor heater
- Head pressure control
- Enclosure heater
Documentation & Downloads
Specifications
Key Specifications
- Model Code
- 22522
- Catalog Number
- T501226G150
- Width (in.)
- 19.00
- Fahrenheit Min.
- -40
- Max Current (A)
- 9.3
- Voltage
- 200 - 250 VAC
- Nominal Watts
- 3516
- Standards
- UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453 || UR/cUR Recognized || UR/cUR Recognized on select models, reference performance data tables. || CE || EAC || Telcordia GR-487 capable
Bulletin NumberMCL
DescriptionOutdoor Model with Heat Pkg.
Depth (in.)11.05
Fahrenheit Max.131
Weight (lb.)164
Nominal BTU/Hr.12000
Height (in.)50.0
