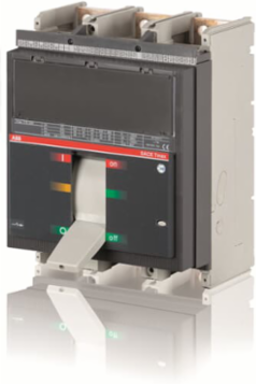

ABB 1SDA062036R1 T7D 1250 3p F F
- MPN: 1SDA062036R1
- UPC: 804325617833
- PPN: ABB-1SDA062036R1
- UNSPSC: 39121100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SWITCH-DISCONNECTOR TMAX T7D 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM
Specifications
Additional Information
| Number of Poles | 3 |
|---|---|
| Product Main Type | SACE Tmax T |
| Product Type | Switch Disconnector |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 A |
| Short-Circuit Performance Level | D |
| Sub-type | T7 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Power Loss | at Rated Operating Conditions per Pole 47 W |
|---|---|
| Product Name | Moulded Case Circuit Breaker |
| Rated Operational Voltage | 690 V AC750 V DC |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Standards | IEC |
| Suitable For | T7 |
| Terminal Connection Type | Fixed Circuit-BreakersFront |
Dimensions
| Product Net Width | 210 mm |
|---|---|
| Product Net Depth / Length | 154 mm |
| Product Net Height | 268 mm |
|---|---|
| Product Net Weight | 9.7 kg |
Classifications
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
|---|---|
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Object Classification Code | Q |
|---|---|
| eClass | V11.1 : 27371403 |
Environmental
| Environmental Information | 9AKK10103A1059 9AKK108467A6707 |
|---|---|
| RoHS Information | 9AKK108466A1424 |
| SCIP | d9b62682-cfde-4251-a59d-a9bcda9dba85 Italy (IT) |
| REACH Declaration | 9AKK108466A1425 |
|---|---|
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Simplified SCIP | 876c9aa7-a98b-4626-9d79-bd6b57bb87ae Netherlands (NL)acbff9fa-f2aa-42c1-ac8b-0fbec7467ec4 Croatia (HR)35135376-a08e-4df2-bcc3-4a038b177f93 Finland (FI)2e7172cf-52b6-49f7-a107-dbc5e916720f Denmark (DK)03918c47-c356-4751-8f9c-b61d34a24e53 Germany (DE)34a5a35e-3846-4fd1-b484-4755fd6f8cd5 Czech Republic (CZ)5e9c8721-9174-47f7-a4a4-95a127e15733 Poland (PL)d6771c2a-4bfb-4dfc-9480-2036f4766bbc Netherlands (NL)b87538d6-62ed-4910-9e7d-079288d75e4a Estonia (EE)84ad465e-6eeb-45b6-9e77-68d101009288 Greece (GR)2a1b7f73-b9ac-41af-b16f-4aa1cfe6ce1d Portugal (PT)a5ae493e-d035-426e-9ee0-9eb03945fac8 Bulgaria (BG)8cd1ae48-fa74-4abd-9e8f-842ddcf1d068 Sweden (SE)1c58126f-2fae-4bfa-b1a2-0b5c570d0f5c Poland (PL)8ab96af0-f175-4ca1-863d-9365aa746f5d France (FR)08bc818e-1949-48f5-9c1a-203b9d3d62f0 Sweden (SE)59e85fbc-291a-4851-b915-9bce7121091b Germany (DE)a11b997c-b10f-42f4-8266-f8a574971c47 Germany (DE)8d1aeaec-4ef1-4a9f-bc46-85d2354827e4 France (FR)4b408ac3-bd64-4357-86e3-c91368afb36a Netherlands (NL)eace05c2-37dd-4aae-94fd-d671168c1c24 Spain (ES)d490f504-9292-4801-9513-9a057f3afdab Netherlands (NL)aa1bf64a-c3af-4fa4-bf01-5649df210487 Netherlands (NL)764463f2-7597-433b-85a3-5ec00488f290 Poland (PL)effb6c2c-bd6f-4de0-944b-69debb495e80 Germany (DE)1bb8ca1f-8288-4434-a65d-15615284fec3 Norway (NO) |
Circular Value
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
|---|
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
|---|
Ordering
| Minimum Order Quantity | 1 piece |
|---|
| Customs Tariff Number | 85362090 |
|---|
