Greenlee H4802 Utility Hydraulic Tamper Assembly - 60 Inch Length, 23 LB, Open/Closed Center System
- MPN: H4802
- UPC: 783310421986
- PPN: GRN-H4802
CAD
$4805.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

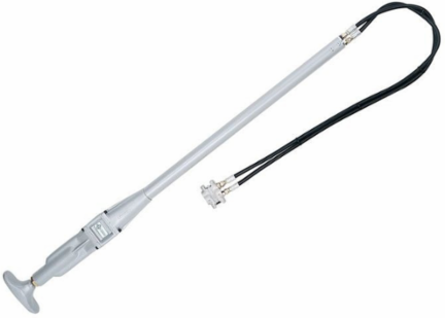

Utility Hydraulic Tamper Assembly - 60 Inch Length, 23 LB, Open/Closed Center System
Features
- Makes quick work of setting poles, asphalt patch, and general construction backfill compacting
- Only three moving parts for low maintenance
- Kidney-shaped foot included
- Hose End Valve - Reversible on/off valve for Open and Closed-Center hydraulic systems
- Valve on Tube - Rotate trigger spool for Open and Closed-Center hydraulic systems
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Length
- 60.000 IN (1.500 M)
- Accessory
- 111964K UPC 40301 Kidney-Shaped Foot
- Flow Range
- 4 - 6 GPM (15 - 23 LPM)
- Operating Pressure
- 1000 - 2000 PSI (69 - 138 BAR)
- Replacement Part
- 56296 56 IN Hose Set for Remote Valve Tampers w/tool end strain reliefs, 111952 Remote Valve
- Standard Foot Size
- 2.500 X 8.000 IN (63.000 X 203.000 MM)
- Valve Location
- Hose End
Width4.000 IN (102.000 MM)
Weight23.000 LB (10.400 KG)
Blow Frequency1160 MIN At 5 GPM (19 LPM)
IncludesKidney-Shaped Foot
Pressure Port9/16 - 18 SAE O-Ring
Return Port3/4 - 16 SAE O-Ring
SystemOpen and Closed Center System
