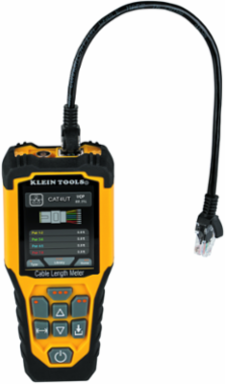

Klein Tools 501-915 Cable Length Meter, Measures up to 3000 Feet, Includes Test Leads & Carrying Case
- MPN: 501-915
- UPC: 092644583858
- PPN: KLT-501-915
- UNSPSC: 41113740
CAD
$284.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

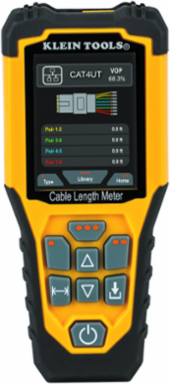

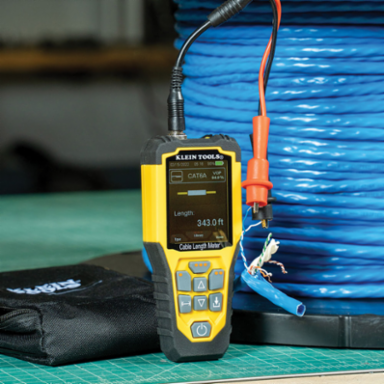

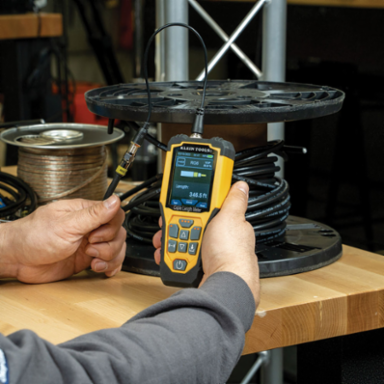

The Klein Tools Cable Length Meter is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds distance to faults in cables, and provides built-in tone generation for cable tracing. This tester provides accurate cable length measurement for a wide variety of cable types at an affordable price. Includes test leads and a carrying case.
Features
- Cable length meter measures length of electrical, data, two-wire and Romex® cables up to 3000 feet (914 m)

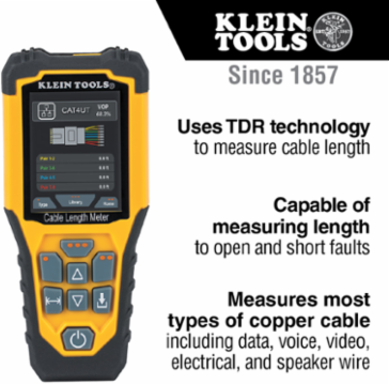

- TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
- Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex® and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
- Stores custom cable VoP values for consistently accurate results and time savings

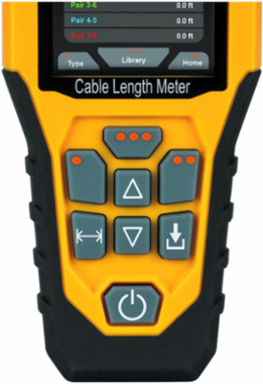

- Simple interface with full color, interactive LCD
- Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)

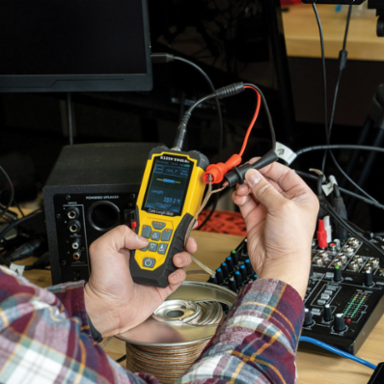

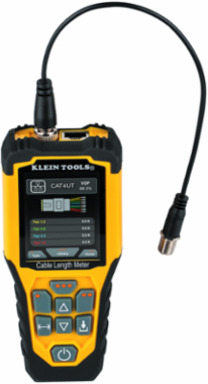

- Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types

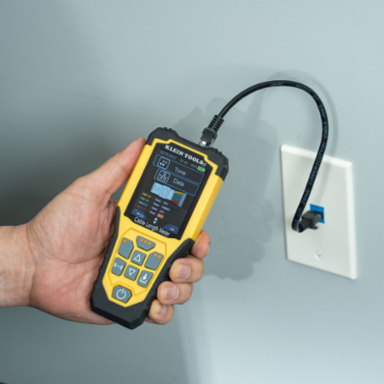

- RJ45 jack for accurate length measurement of terminated data cables
- Measurements can be switched between and metric and imperial units

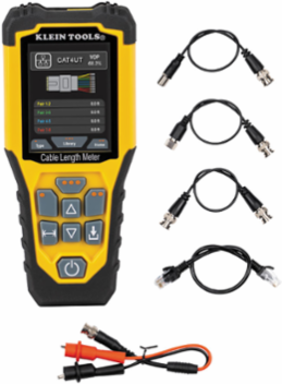

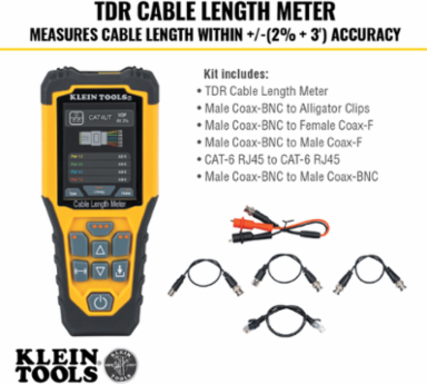

- Includes padded carrying case and leads
- Velocity of Propagation Range: 20 to 99.9%
Documentation & Downloads
Specifications
Additional
| Cable Length Measurement Range | up to 3000 ft (914 m) |
|---|---|

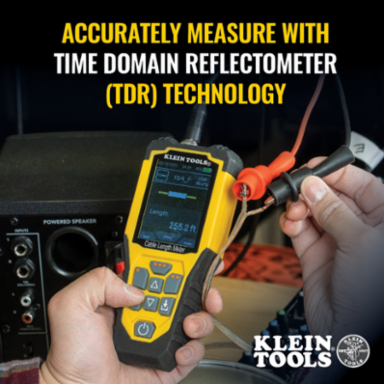

| Technology | TDR (Time Domain Reflectometry) |
| Connection & Adapter Types | Alligator Clips, Female Coax-F, Male Coax-F, RJ45, BNC |
| Cable Type | Coaxial, Data, Electrical, Two-wire, Romexae, Speaker Wire |
| Power Protection | Protected up to 30V peak AC or DC |
| Compliance | Not for use on energized cables above 30V |
| Drop Protection | 6.6 ft (2 m) |
| Overall Height | 6.2 in (15.7 cm) |
| Overall Length | 2.7 in (6.9 cm) |
| Country of Origin | China |
| Measurement Accuracy | b12% + 3 ft (0.9 m) |
|---|---|
| Velocity of Propagation Range | 20 to 99.9% |
| Display | Full color backlit LCD |
| Tone Generator | Two Tones, Built-in for cable tracing |
| Measurement Units | Feet or meters |
| Battery Life | Active approx 15 hr; standby approx 3 yr |
| Weight | 0.476 lbs |
| Overall Width | 1.4 in (3.6 cm) |
| Material | ABS Plastic |
