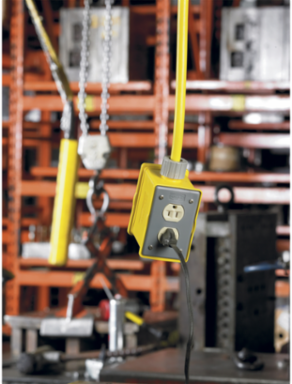

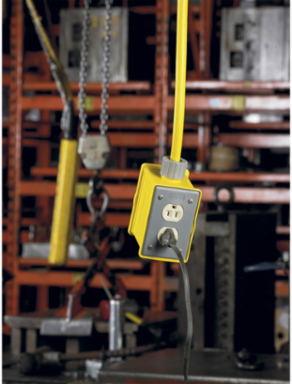

Hubbell Wiring Device-Kellems HBLPOB1D Portable Outlet Box with Strain Relief, 1-Gang, 5.38 Inch x 4.2 Inch x 3.18 Inch, Yellow Non-Metallic
- MPN: HBLPOB1D
- UPC: 783585318110
- PPN: HBL-HBLPOB1D
- UNSPSC: 39121303
CAD
$172.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

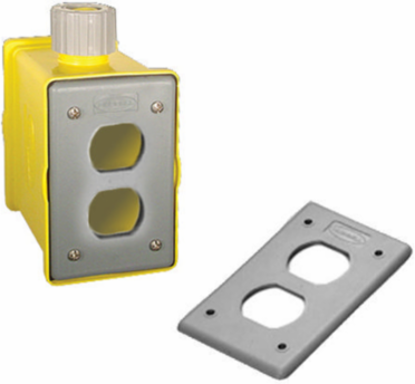

Temporary Power Products, Portable Outlet Boxes, Boxes and Plates, Box with Strain Relief, 1-Gang Front and Back, Yellow Non-Metallic, Furnished with 2) Gray Duplex Plates
Features
- Impact resistant Valox® cover plate
- Ships with 2) Indoor Duplex Plates
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.18 in
- Performance
- Environmental - Flammability - UL 94V-0, 94-5VA classification;Environmental - Impact and Crush Resistance - In accordance with UL 514C, UL50, C22.2 No. 18 and C22.2 No. 94.;Environmental - Moisture Resistance - Wet and damp locations, Enclosure Type 3R when used with weatherproof cover plates.Dry, indoors locations, Enclosure Type 1 with all other cover plates;Environmental - Operating Temperature - 80°C maximum;-35°C minimum;Environmental - UV Resistance - All materials are UV stabilized
- Application
- Devices and Splices
- Color
- Yellow
- Length
- 5.38 in
- Special Features
- Ships with 2) Indoor Duplex Plates
- Type
- Outlet Box
- Weight
- 1.05 lb.
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- PULP & PAPER SOLUTIONS
- Style
- With Two Duplex (Indoor) Cover Plates
- Description - Invoice
- PORTABLE OUTLET BOX, 2) DUP PLT, YL
- Harmonization Code
- 3926909989
- MSDS Flag
- No
- Cord Range
- .38" - .75"
- Construction
- Fabricated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585318119
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions5.38 in x 4.2 in x 3.18 in
Industry Standard(s)C22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R
Standards - RoHS Compliance StatusCM
Cable EntryTop Hub
Knockouts1) Hub
Size5.38 in x 4.2 in x 3.18 in
StandardC22.2 No. 18 and C22.2 No. 94 Enclosures Types 1, 3R and C22.2 No. 0.4;UL 514C, UL467 and UL50 Enclosures Types 1, 3R
Width4.2 in
Engineering Drawing 1 Display TextHBLPOB1D AutoCAD Drawing
General Literature Asset 2 Display TextPulp & Paper Solutions
Display SizeStandard Sized Product
Class CodeA20
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA20A270
Material - Mounting HardwareCable Mounted
MaterialNon-Metallic
BOX SIZE6.700x12.600x9.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585318110
Case Weight4.730 lb.
Lowest Level UOMEach
Pallet Height46.900 in
Pallet Weight632.800 lb.
NAICS Code3359326105
