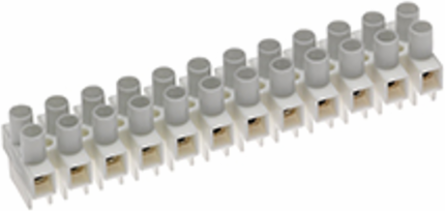

Molex 391001812 8.00mm Pitch Beau Eurostyle Two-Screw Terminal Strips, 12 Circuits
- MPN: 391001812
- PPN: WOD-M800-01-12-5-M1
CAD
$3.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8.00mm Pitch Beau Eurostyle Two-Screw Terminal Strips, 12 Circuits
Documentation & Downloads
Specifications
Material Info
| Engineering Number | M800-01-12-5-M1 |
|---|
Reference - Drawing Numbers
| Sales Drawing | SD-39100-011 |
|---|
Electrical
| Current - Maximum per Contact | 20.0A |
|---|
| Voltage - Maximum | 600V |
|---|
Physical
| Circuits (Loaded) | 12 |
|---|---|
| Color - Resin | White |
| Lock to Mating Part | None |
| Material - Resin | Nylon |
| Number of Rows | 2 |
| PCB Retention | Yes |
| Pitch - Mating Interface | 8.00mm |
| Polarized to Mating Part | No |
| Temperature Range - Operating | -40° to +105°C |
| Circuits (maximum) | 12 |
|---|---|
| Entry Angle | Horizontal |
| Material - Metal | Stainless Steel |
| Net Weight | 32.250/g |
| Orientation | Vertical |
| Panel Mount | Mounting Holes Between Circuit |
| Pitch - Termination Interface | 8.00mm |
| Stackable | No |
| Wire Size AWG | 12, 14, 16, 18, 20, 22 |
Product Environmental Compliance
| EU ELV | Not Relevant |
|---|---|
| REACH SVHC | Contained Per -D(2020)9139-DC (19 Jan 2021) |
| EU RoHS | Compliant with Exemption 6(c) |
|---|---|
| Low-Halogen Status | Low-Halogen |
