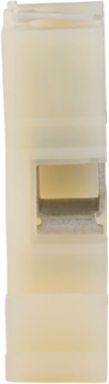

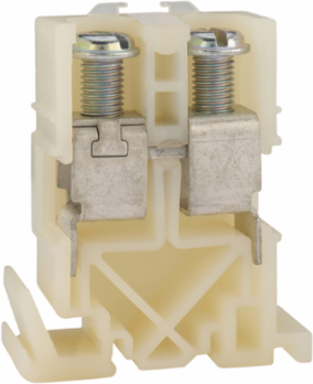

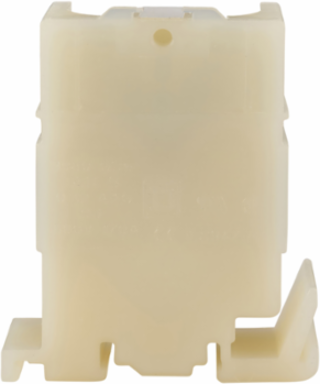

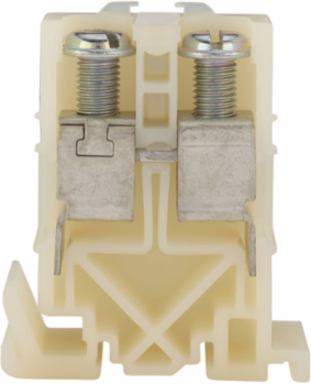

Square D 9080GD6 Linergy Terminal Block, 180A, 600V, Natural Color, AWG 12...AWG 1/0
Square D 9080GD6 Linergy Terminal Block, 180A, 600V, Natural Color, AWG 12...AWG 1/0
- MPN: 9080GD6
- UPC: 785901155027
- PPN: SCH-9080GD6
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.91/ EA
Description
Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications.
Specifications
Physical Attributes
- Color
- natural
Complementary Attributes
- Line Rated Current
- 180-180 A UL, 170-170 A CSA
Ue Rated Operational Voltage600 V AC/DC
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- 35 mm DIN rail, 9080GH track
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Connection
- tin plated steel box lugs
- Localisation On Device
- standard
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Warranty In Months
- 18
- Pn
- 1
- Width Nominal
- 2.12 in
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL recognized E60616 CCN XCFR2, CE, CSA file 62144 class 6228 01
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1918
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 12...AWG 1/0 copper
Energy Efficiency OptimizedFalse
Number Of Terminal Blocks17 per foot
Product Or Component Typeterminal block
Range Of Product9080G
Sustainable PackagingNo
Connections Terminalslug tin plated steel 45-50 lbf.in : AWG 12...AWG 1/0 copper)
Offer Owner Code190788
Height Nominal2.71 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -40-257 °F
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- GD6B
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal block
Range Of Product9080G
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Mexico, United States
Depth0.7 in
