Ideal Industries 89-312 Terminal Strip, 12-Pole, 22-14 AWG
Ideal Industries 89-312 Terminal Strip, 12-Pole, 22-14 AWG
- MPN: 89-312
- PPN: IDL-89-312
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.83/ EA
Description

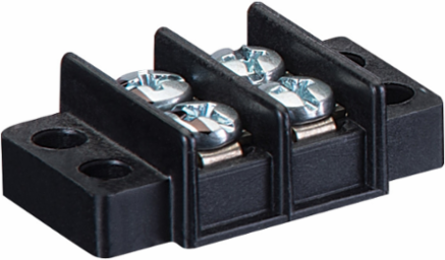

IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.
Features
- .375 (9.52mm) center spacing
- Accepts wire sizes from 14 through 22 AWG Cu
- #6-32 Philslot, zinc-plated steel terminal screws
- Heavy-duty, corrosion-resistant screws, surface plates, and optional hardware
- Rugged polyester thermoplastic base (UL Rated 94V-0)
- UL Recognized (E82048) and CSA Certified (LR15364)
Specifications
Specifications
- Recommended torque
- 9 in.-lb.
Downloads
