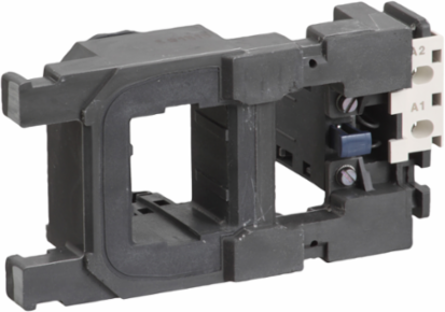

Schneider Electric LX4FH110 TeSys F Contactor Coil 110V DC, 2400 Cycles/Hour, 0.74 kg
- MPN: LX4FH110
- PPN: SCH-LX4FH110
CAD
$1053.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys F DC coil 110V (voltage code FD), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1 F265, F330. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Average Resistance
- 16.8 Ohm inrush 20 °C || 3180 Ohm holding 20 °C
- Control Circuit Type
- DC low consumption
- Product Or Component Type
- contactor coil
- Inductance Of Closed Circuit
- 424 H
- Operating Time
- 40...50 ms closing || 40...65 ms opening
- Device Short Name
- LX4FH
[Uc] Control Circuit Voltage110 V DC
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F265 || LC1F330
Mechanical Durability10 Mcycles
Complementary
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C) || drop-out 0.15...0.2 Uc 55 °C)
- Coil Technology
- without built-in suppressor module
Hold-In Power Consumption In W5-5 W 20 °C
Inrush Power In W750-750 W 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-55 °C
Net Weight0.74 kg
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
