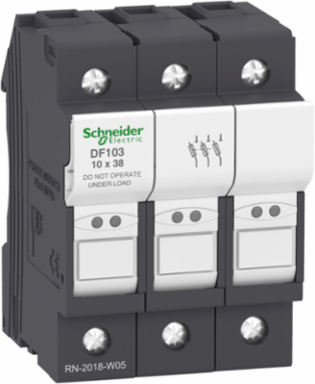

Schneider Electric DF103 TeSys DF Fuse Carrier 3P 32A 690VAC Fuse Size 10x38mm

  • MPN: DF103
  • PPN: SCH-DF103
  • UNSPSC: 39121624
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $83.83

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (52.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 4 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

    Features

    • To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA at 400V
    • Dual positions locking system for easy DIN-rail mounting
    • Prevent damage to your installation
    • Reduce risk for equipment and personnel
    • Improve production uptime

    Documentation & Downloads

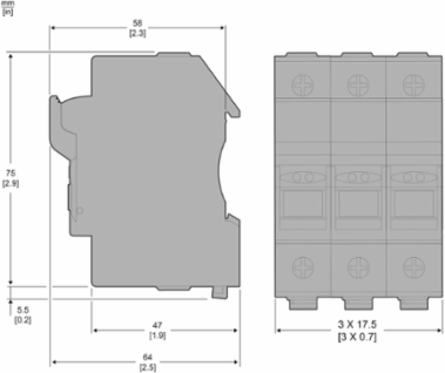

    Specifications

    Key Specifications

    Country of OriginFrance, Tunisia, United States
    Depth61 mm
    Weight133 g

    Physical Attributes

    Fuse Size10 x 38 mm

    Complementary Attributes

    Ue Rated Operational Voltage690 V AC, 690 V DC
    Ie Rated Operational Current32 A 400 V AC
    Uimp Rated Impulse Withstand Voltage6 kV
    Short Circuit Withstand120 kA 400 V IEC 60947-3, 120 kA 500 V IEC 60947-3
    Ui Rated Insulation Voltage690 V AC

    Important Information Attributes

    Persona Type IdsEU, LC, OM, OM8, PB
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Fuse Type0-32 A, gG, 0-32 A, aM
    Utilisation CategoryAC-20B IEC 60947-3, DC-20B IEC 60947-3
    Certificate AgencyIEC, UL Recognized, CSA, CCC, EAC, DNV-GL
    Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.013410833333333334
    Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.4020416666666669
    Local Data StatusPublishable
    Return IndicatorY
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1919
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Compatibility CodeDF10
    Device Short NameDF10
    Fire Resistance960 °C IEC 60695-2-1
    Mounting Support35 mm symmetrical DIN rail
    Overvoltage CategoryIII
    Power Dissipation In W3 W maximum power dissipation by fuse
    Product NameTeSys DF
    Quantity Per Setset of 4
    Range Of ProductTeSys fuse carriers
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint4 kg CO2 eq.
    Fuse Type 9 Fuse TypeaM
    Data Sourceextrapolated product
    Width Nominal52.5 mm
    Customs Code8536509045
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y20
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Tightening Torque2.2 N.m PZ2, 2.2 N.m flat Ø 5.5 mm
    Connections Terminalsscrew clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigidscrew clamp terminals 1 1-16 mm²flexible with or without
    Carbon Footprint Of The Distribution Phase A40.04627291666666667, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.0003712916666666667, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B63 kg CO2 eq., 2.775000000000001
    Local Publishable Date2026-08-21
    Device TypeLV equipment - LV fuse - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Control Typetoggle padlockable
    Energy Efficiency OptimizedFalse
    Mounting Positionvertical +/- 23°)
    Number Of Poles3P
    Poles Description3P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typefuse carrier
    RangeTeSys
    ReturnabilityYes
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2016-11
    Height Nominal79.5 mm
    Nbr. Of Units In Pkg.1
    Ith Conventional Free Air Thermal Current32 A 20 °C
    Functional Unit DescriptionProtecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
    Functional Unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh18.9216

    Environment Attributes Main

    China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Product CompatibilityDF2CA fuse cartridge, DF2CN fuse cartridge
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint4.237096708333334
    Environmental DisclosureENVPEP2010021EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2010021EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Operation-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C-40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Storage-40-70 °C-40-70 °C
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2020-10-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typefuse carrier
    Range Of ProductTeSys fuse carriers

    ETIM

    ETIM 8EC002705
    ETIM 10EC002705
    ETIM 9EC002705

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    TeSys DF Fuse Carrier 3P 32A 690VAC Fuse Size 10x38mm
    TeSys DF Fuse Carrier 3P 32A 690VAC Fuse Size 10x38mm
