Weidmuller 2656670000 TGD ELM-4 CL2
- MPN: 2656670000
- PPN: WDM-2656670000
CAD
$118.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet

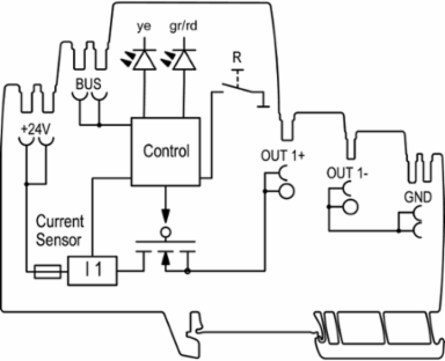

Description
Electronic load monitoring
Documentation & Downloads
Specifications
General Data
| Conformal coating | No |
|---|---|
| Operating temperature | -25 °C...70 °C |
| Relay to activate the output | No |
| Surge voltage category | III |
| Function key | Activation time < 3s, Reset, ON |
|---|---|
| Protection degree | IP20 |
| Surge protection input, output, bus | Suppressor diode |
Signalling
| LED green | Operation (failure-free), Early warning: I Out > 90% I Rated (flashing) |
|---|---|
| Yellow LED | Address is assigned, Address is being assigned (flashing) |
| Red LED | Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing) |
|---|
Dimensions And Weights
| Width | 6.1 mm |
|---|---|
| Height | 125 mm |
| Depth | 96.5 mm |
| Net weight | 0 g |
| Width (inches) | 0.24 inch |
|---|---|
| Height (inches) | 4.921 inch |
| Depth (inches) | 3.799 inch |
Input
| DC input voltage range | 18…30 V DC |
|---|---|
| Rated input voltage | 24 V DC |
| Input fuse (internal) | Yes |
|---|---|
| max. admissible residual ripple at the input | 100 mVpp |
Output
| Capacitive load | 4.700 µF |
|---|---|
| Rated current | 4 A |
| adjustable rated current | Yes |
| Connection system | PUSH IN |
|---|---|

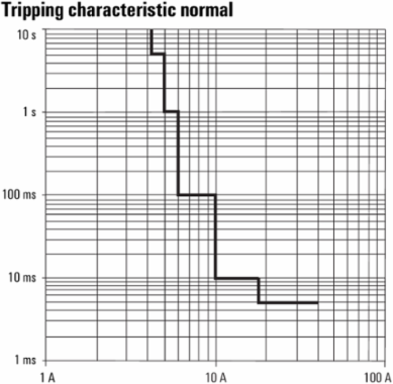

| Triggering characteristic | see characteristic curve |
Insulation Coordination
| Surge voltage category | III |
|---|
Connection Data (Output)
| Conductor cross-section, flexible , max. | 2.5 mm² |
|---|---|
| Conductor cross-section, rigid , max. | 2.5 mm² |
| Connection system | PUSH IN |
| Screwdriver blade | 0.6 x 3.5 |
| Conductor cross-section, flexible , min. | 0.14 mm² |
|---|---|
| Conductor cross-section, rigid , min. | 0.14 mm² |
| Number of terminals | 2 (+ / -) |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | -25 °C...70 °C |
| Operating temperature, min. | -25 °C |
|---|---|
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
