Superstrut H119-5/8EGC Threaded Products and Hardware
- MPN: H119-5/8EGC
- UPC: 786210562353
- PPN: T-B-H119-5/8EGC
CAD
$12.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

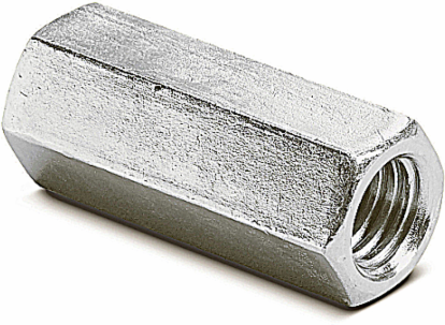

Coupling, Standard Rod, Size 5/8 Inch, Length 2-1/8 Inches, Electro-Galvanized Steel
Specifications
European Specifications (ETIM)
| ETIM | EC002360 Long nut |
|---|---|
| Surface protection | Galvanic/electrolytic zinc plated |
| Threaded connection 1 | Internal thread |
| Threaded connection 2 | Internal thread |
| Material | Steel |
|---|---|
| Size of thread connection (inch) 1 | Other |
| Size of thread connection (inch) 2 | Other |
| Shape | Hexagon |
North American Specifications (UNSPSC)
| UNSPSC | 31163016 Rod coupling |
|---|---|
| Brand Name | Superstrut |
| Special Features | All threaded products are American Standard thread, free fit class 2 |
| Material | Steel |
| Size | 5/8 Inch |
| IGCC | 3068 Rod coupling |
|---|---|
| Type | Threaded Products and Hardware |
| Application | To provide resistance to pullout and resistance to side slip in excess of the full strength of the channels with which they are used. |
| Finish | SilverGalv/Electro-Galvanized |

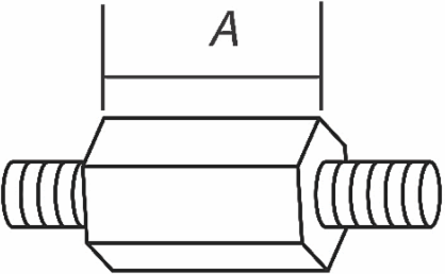

| Length | 2-1/8 in |
Packaging
| Inner Quantity | 15 |
|---|---|
| Outer Quantity | 150 |
| Weight Uom | 28 lbs. per 100 |
| Inner Dimensions (inches) | 1x1x1 |
|---|---|
| Outer Dimensions (inches) | 2x2x2 |
