Documentation & Downloads
Superstrut H119-1/4EGC Threaded Products and Hardware
- MPN: H119-1/4EGC
- UPC: 786210562858
- PPN: T-B-H119-1/4EGC
CAD
$0.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

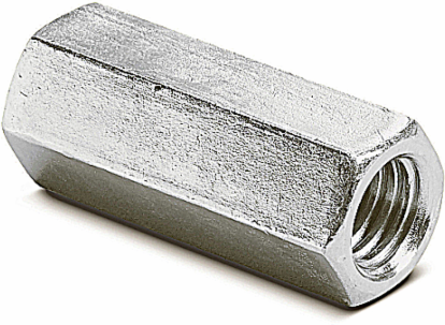

Coupling, Standard Rod, Size 1/4 Inch, Length 7/8 Inches, Electro-Galvanized Steel
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 31163016 Rod coupling
- Brand Name
- Superstrut
- Special Features
- All threaded products are American Standard thread, free fit class 2
- Material
- Steel
- Size
- 1/4 Inch
IGCC3068 Rod coupling
TypeThreaded Products and Hardware
ApplicationTo provide resistance to pullout and resistance to side slip in excess of the full strength of the channels with which they are used.
FinishSilverGalv/Electro-Galvanized

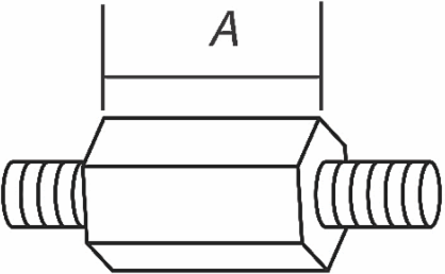

Length7/8 in
European Specifications (ETIM)
- ETIM
- EC002360 Long nut
- Surface protection
- Galvanic/electrolytic zinc plated
- Threaded connection 1
- Internal thread
- Threaded connection 2
- Internal thread
MaterialSteel
Size of thread connection (inch) 11/4 inch
Size of thread connection (inch) 21/4 inch
ShapeHexagon
Packaging
- Inner Quantity
- 50
- Weight Uom
- 2.19 lbs. per 100
Outer Quantity500
