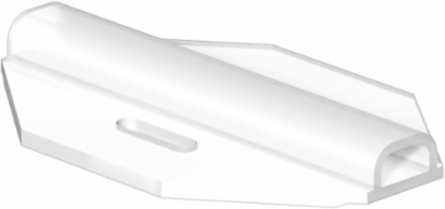

Weidmuller 1866680000 TMX 30 V0
- MPN: 1866680000
- PPN: WDM-1866680000
CAD
$0.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TM, Socket x 20 mm, PVC, Colour: Transparent, Conductor O.D.: 10 - 317 mm
Documentation & Downloads
Specifications
General Data
| Colour | Transparent |
|---|---|
| Operating temperature range | -40...80 °C |
| Type of printing | neutral |
| Width | 20 mm |
| Material | PVC |
|---|---|
| Recommended industries | Transportation, Machinery |
| UL 94 flammability rating | V-0 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 20 mm |
|---|---|
| Height | 30 mm |
| Net weight | 0.62 g |
| Width (inches) | 0.787 inch |
|---|---|
| Height (inches) | 1.181 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
| UNSPSC | 44-12-17-08 |
Conductor And Cable Markers
| Conductor O.D. | 10 - 317 mm |
|---|---|
| Conductor O.D., min. | 10 mm |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D., max. | 317 mm |
|---|---|
| Conductor cross-section, max. | 150 mm² |
