nVent Hoffman PAC226T86 Top-Mount Air Conditioner - PAC226T86
- MPN: PAC226T86
- UPC: 783510153892
- PPN: HOF-PAC226T86
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

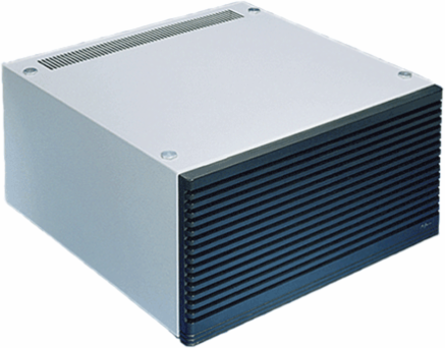

Top-Mount Air Conditioners replace the solid top in a standard assembly. Air conditioners require no hole cutting or special kits for installation. These air conditioners are available with cooling capacities of 2200 and 4000 BTU/hr. and are equipped with an adjustable thermostat for optimal enclosure temperature regulation. Top-Mount Air Conditioners are finished with RAL 7035 textured light-gray polyester powder paint. Installing this air conditioner on an enclosure maintains the Type 12 rating. 1. Gasket kit and hardware for mounting to enclosure are included. 2. Condensate overflow drain hose included.
Documentation & Downloads
Specifications
Key Specifications
| Bulletin Number | PAC |
|---|---|
| Model Code | 15389 |
| Interchangeable | False |
| Ship Wt. kg | 82 |
| A in. | 31.5 |
| X in. | 14.80 |
| Fits Frame Top B x C | 800 x 600 |
| FLA Max. Amb. Temp. 230 50 | 4.3 |
| BTU Hr. W Max. Amb. Temp. 230 50 | 2100 (615) |
| Material | Steel |
|---|---|
| Ship Wt. Std. Pkg. (lbs) | 129.0 |
| Ship Wt. lb. | 180 |
| Catalog Number | PAC226T86 |
| B in. | 23.62 |
| W x D in. | 31.19 x 23.62 |
| FLA Max. Amb. Temp. 230 60 | 4.2 |
| BTU Hr. W Max. Amb. Temp. 230 60 | 2400 (703) |
| Max. Amb. Temp. F | 125 |
