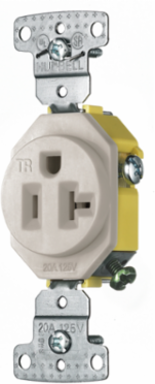

Bryant RR201LATR Residential Grade Tamper Resistant 20A 125V Receptacle, Light Almond
- MPN: RR201LATR
- UPC: 883778301995
- PPN: HBL-RR201LATR
- UNSPSC: 39121406
CAD
$8.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
tradeSELECT® Straight Blade Residential Grade, Tamper ResistantSingle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Self Grounding, Ligh tAlmond
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- Tamper Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.650 in
- Amperage Rating
- 20 A
- Color
- Light Almond
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire Grounding
- Special Features
- Tamper Resistant- Self Grounding
- Wattage
- 2500
- Voltage Rating Description
- 125 VAC
- Connectivity
- Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire Grounding
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 2.300x8.100x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778301995
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
ApplicationResidential Receptacles
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
General Literature Asset 1 Display TextGeneral Literature - Tamper-Resistant and Weather Resistant Receptacles
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRESI SGL RCPT, 20A 125V, TR, LA
Harmonization Code8536698000
MSDS FlagNo
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.700 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
