Blackburn

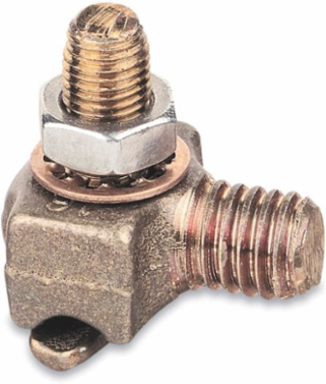

Blackburn TTC4P Transformer Tank Ground Connector 1-1/4 X 7/8 X 1-3/8 Inch, Copper, Mechanical

Transformer Tank Ground Connector 1-1/4 X 7/8 X 1-3/8 Inch, Copper, Mechanical
  • MPN: TTC4P
  • UPC: 783786300495
  • PPN: T-B-TTC4P
  • UNSPSC: 39121613

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$19.81/ EA

Description

Transformer Tank Ground Connector for Wire Range 1 Stranded - 10 Solid, Stud Size 1/2-13 UNC-2A, Tin-Plated. 1-1/4 X 7/8 X 1-3/8 inches.

Specifications

Additional Information

Application
Transformer Tank Ground Connector
Connection Type
Mechanical
Insulation Material
None
Product Name
GROUND CONNECTOR CLAMP
Size
1-1/4 X 7/8 X 1-3/8 in
Type of Indicator
None
Brand / LabelBlackburn
Effective Date19990923
Material of ConductorCopper
Product TypeTransformer Tank Ground Connector
Special FunctionsCast of High Conductivity Bronze - 1/2 inch-13 stud fits all standard EEI-NEMA distribution transformers. One size connector to handle full range of grounding conductors from #8 through #2/0 stranded. No special tools required.

Ordering

Country of Origin
India (IN)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4909 >> Grounding devices or assemblies

Dimensions

Product Net Depth / Length
1-3/8 in
