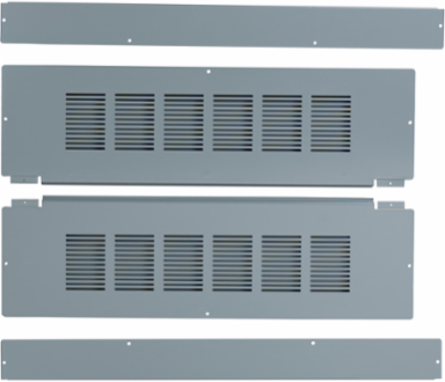

Square D HCW68TS Trim front, I-Line Panelboard, HCP, surface mount, 4 pcs, 42in W x 68in H

MPN: HCW68TS
UPC: 785901089438
PPN: SCH-HCW68TS

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$838.35/ EA

Qty:

Loading add to cart quantity...

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line trim, are for an HCP, panelboards. This panelboard trim comes in 4 pieces and are surface mounted. The dimensions for this product are 68 in (H) 42 in (W) (D) and have a product weight of 18.6 kg. This product complys to CE & cULus standards.

Specifications

Complementary

Height: 68 in

Product Destination: panelboard HCP 42 in 68 in

Depth: 9.5 in

Device Mountingsurface

Width42.25 in

Net Weight18.6 kg

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407017EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Specifications

Range Of Product: I-Line

Product Or Component Type: trim

Quantity Per Set4

Environment

Product Certifications: CE || cULus

Downloads
