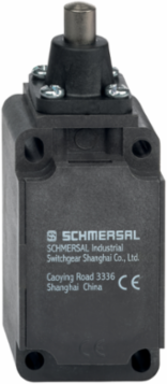

Schmersal 101060420 TS 336-02ZH Position Switch, 116 g, Thermoplastic, 103.5 mm Height, 2 Safety Contacts
- MPN: 101060420
- PPN: SCM-101060420
CAD
$99.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TS 336-02ZH Position Switch, 116 g, Thermoplastic, 103.5 mm Height, 2 Safety Contacts
Features
- slim design
- 1 Cable entry M 20 x 1.5
- Design to EN 50041
- Thermoplastic enclosure
- Double-insulated
- Good resistance to oil and petroleum spirit
- Wide range of alternative actuators
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- Opener (NC)
- Bounce duration, maximum
- 2 ms
- Material of the contacts, electrical
- Silver
Required rated short-circuit current1,000 A
Utilisation category AC-154 A
Utilisation category DC-134 A
Switching principleSlow action with staggered contacts
Switching frequency5,000 /h
Mechanical data - Dimensions
- Length of sensor
- 38 mm
- Height of sensor
- 103.5 mm
Width of sensor40.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 20,000,000 Operations
General data - Features
- Safety functions
- Yes
Number of safety contacts2
General data
- Housing construction form
- Norm construction design
- Enclosure material
- Plastic, glass-fibre-reinforced
Actuator type to EN 50041B
Gross weight116 g
Safety classification
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN IEC 60947-5-1
Mission time20 Year(s)
Ambient conditions
- Ambient temperature
- -30 ... +80 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.

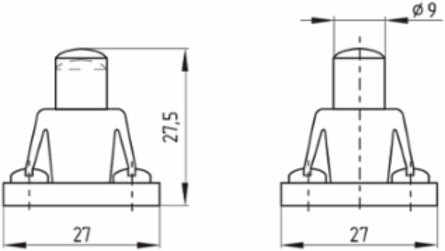

Mechanical data
- Actuating element
- Plunger
- Actuating force, minimum
- 17 N
- Note (Switchover time)
- Switchover time in accordance with actuating speed
Mechanical life, minimum30,000,000 Operations
Actuating speed, maximum0.5 m/s
Approvals - Standards
- Certificates
- cULus | CCC
