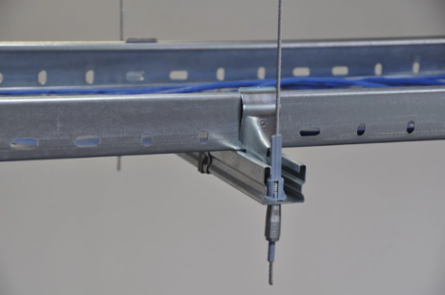

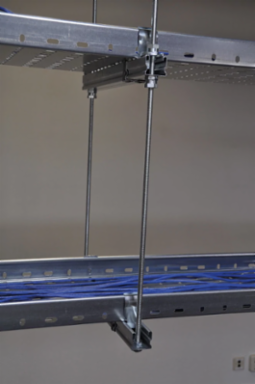

nVent Caddy TSR1220N Telescoping Strut Replacement, No Nut
- MPN: TSR1220N
- UPC: 782856916451
- PPN: CAD-TSR1220N
- UNSPSC: 30101804
CAD
$17.70
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

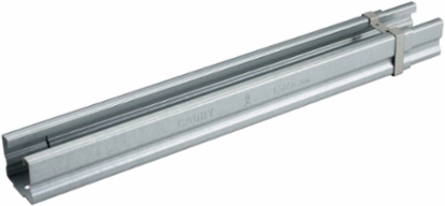

Telescoping Strut Replacement, No Nut
Features
- Can be attached directly to a wall for wall-mounted applications

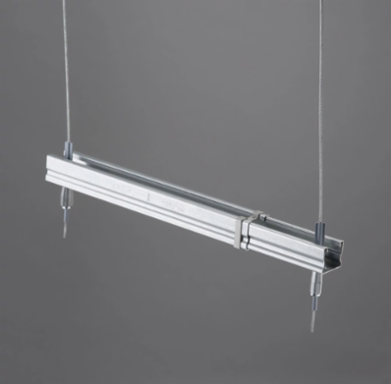

- Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
- Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods

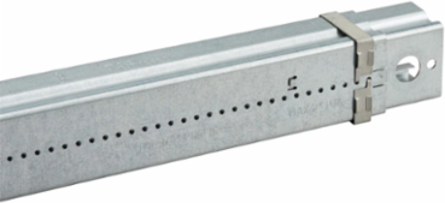

- Integrated ruler displays space between hanger rods in inches and centimeters

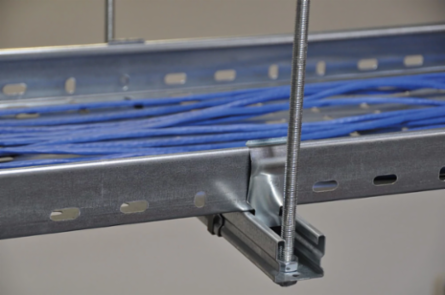

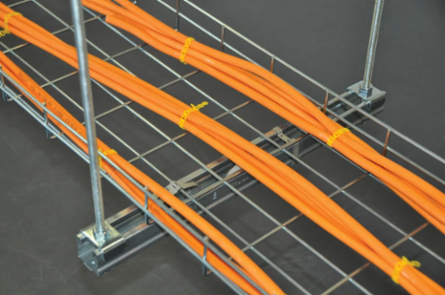

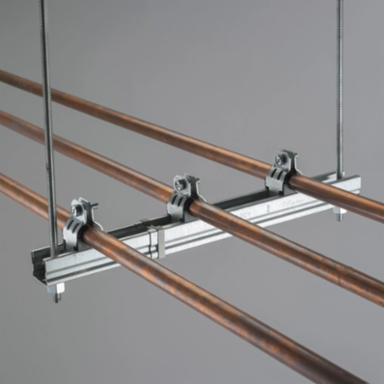

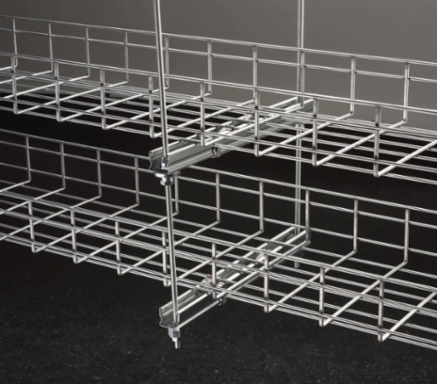

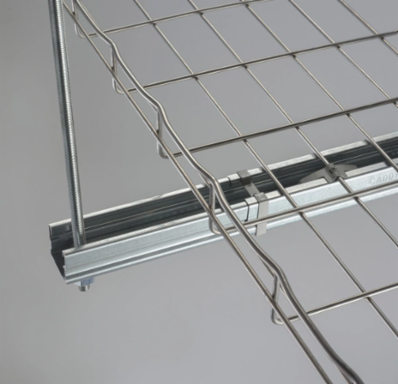

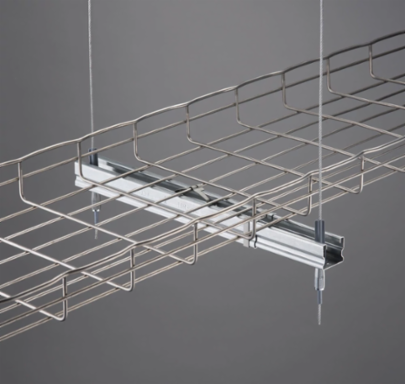

- Supports up to seven 2" (50 DN) conduits, six 2" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18" (450 mm) cable tray
- Conduit can be supported on the top and bottom, eliminating the need for double sided strut

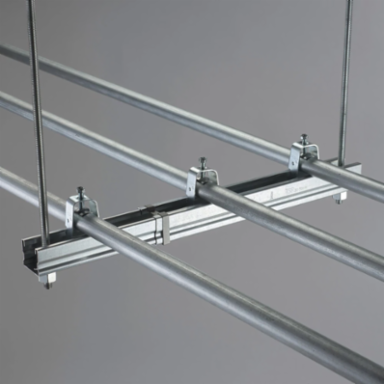

- Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation
Documentation & Downloads
Specifications
Key Specifications
| BABA | Yes, BABA Compliant |
|---|---|
| Hole Size 1 (HS1) | 13.7 |
| Thickness (T) | 1 |
| Static Load 2 (F2) | 880 |
| Length | 21.5 in |
| Depth | 1 3/8" |
| Slot Size | 7/8 in |
| Material | Steel |
|---|---|
| Hole Size 2 (HS2) | 4.8 |
| Static Load 1 (F1) | 1,330 |
| Sub Brand | CADDY |
| Width | 1 5/8 in |
| Gauge | 0.04 in |
| Finish | Pregalvanized |
