Weidmuller 1230050000 TW PRV4 1-4
- MPN: 1230050000
- PPN: WDM-1230050000
CAD
$2.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

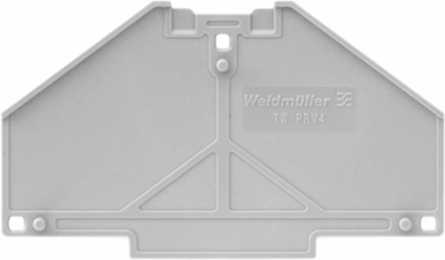

P-series, Seperation plate, grey, 2 mm, Printed 1-4, horizontally
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 2 mm
- Height
- 70 mm
- Depth
- 41.1 mm
- Net weight
- 4.6 g
Width (inches)0.079 inch
Height (inches)2.756 inch
Depth (inches)1.618 inch
Additional Technical Data
- Snap-on
- Yes
Material Data
- Material
- Polycarbonate
- UL 94 flammability rating
- V-0
Colourgrey
Classifications
- ETIM 6.0
- EC000886
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC000886
eClass 9.127-14-11-33
System Specifications
- Version
- Printed 1-4, horizontally
Number of levels4
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 125 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
