Shield-Kon

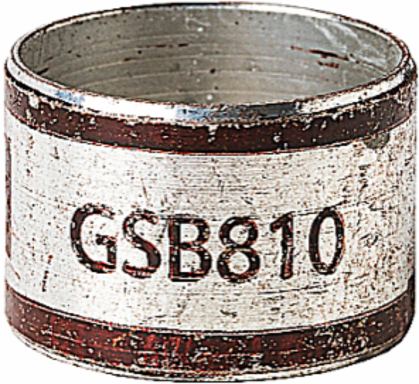

Shield-Kon GSB810 Two-Piece Inner Sleeve Connector, 20.57mm Inner Diameter, 22.35mm Outer Diameter

Two-Piece Inner Sleeve Connector, 20.57mm Inner Diameter, 22.35mm Outer Diameter
  • MPN: GSB810
  • PPN: T-B-GSB810

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$15.10/ EA

Description

Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 20.57mm, Outer Diameter 22.35mm, Color Brown, Copper Alloy

Features

  • Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables.
  • The sleeves are color coded according to their size.
  • Applications in communications, aerospace, and electronics.

Specifications

European Specifications (ETIM)

ETIM
EC002650 Connection for screened wires
Sleeve form
Internal sleeve
Outer diameter sleeve
22.35mm
Sleeve length
15.2mm
Compression shape
Round
Model2-part
InsulatedN
Inner diameter sleeve20.57mm
Colour codeBrown
Reel packagingN

North American Specifications (UNSPSC)

UNSPSC
39121432 Electrical terminals
Brand Name
Shield-Kon
Special Features
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables. The sleeves are color coded according to their size. Applications in communications, aerospace, and electronics.
Color
Brown
IGCC4603 Electrical terminals
TypeTwo-Piece Inner Sleeve Connector
MaterialCopper Alloy

Packaging

Inner Quantity
50
Outer Quantity
250
Weight Uom
1.88 lbs. per 100
Inner Dimensions (inches)3x3x3.5
Outer Dimensions (inches)3.125x7x9.75
