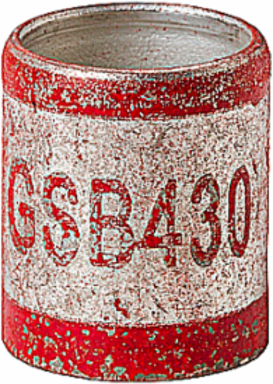

Shield-Kon GSB430 Two-Piece Inner Sleeve Connector, Length 15.2mm, Outer Diameter 12.7mm, Color Red

MPN: GSB430
PPN: T-B-GSB430

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$9.65/ EA

Qty:

Loading add to cart quantity...

Description

Two Piece Inner Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter 10.92mm, Outer Diameter 12.70mm, Color Red, Copper Alloy

Features

Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables.
The sleeves are color coded according to their size.
Applications in communications, aerospace, and electronics.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Shield-Kon

Special Features: Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Inner sleeve for the Circular Range (the corresponding outer sleeve is crimped with a hydraulic head and the result is a circular-shaped crimp), for grounding multiple or overall shielded cables. The sleeves are color coded according to their size. Applications in communications, aerospace, and electronics.

Color: Red

IGCC4603 Electrical terminals

TypeTwo-Piece Inner Sleeve Connector

MaterialCopper Alloy

European Specifications (ETIM)

ETIM: EC002650 Connection for screened wires

Sleeve form: Internal sleeve

Outer diameter sleeve: 12.7mm

Sleeve length: 15.2mm

Compression shape: Round

Model2-part

InsulatedN

Inner diameter sleeve10.92mm

Colour codeRed

Reel packagingN

Packaging

Inner Quantity: 50

Outer Quantity: 250

Weight Uom: 1.25 lbs. per 100

Inner Dimensions (inches)5x3x3.8

Outer Dimensions (inches)3.125x7x9.75
