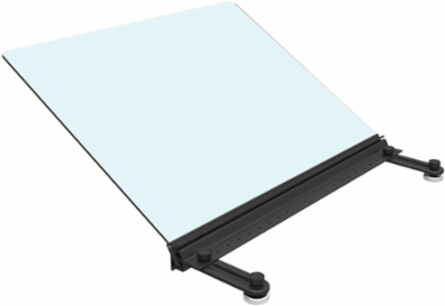

nVent Hoffman UACTB75V Rack Top Baffle, 10.90 x 29.50 x 22.50 Inch, Black, Polycarbonate PVC
- MPN: UACTB75V
- UPC: 783510386146
- PPN: HOF-UACTB75V
- UNSPSC: 39121321
CAD
$918.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Rack Top Baffles are suitable for standard width cabinets with solid, perforated or semi-solid tops. This Express Rack Top Baffle, UACTB75V item measures 10.90x29.50x22.50 inches with a material of Polycarbonate PVC colored Black.
Features
- Allows additional natural light into aisle
- The Rack Top Baffles require a minimum of 1 inch (25 mm) unobstructed depth across the entire front edge of the cabinet for secure attachment
- Additionally, the two attachment fixtures on each baffle require a 1.50 x 5.50 inch (38 x 140 mm) unobstructed area on the top of the cabinet
- These attachment mounts allow a high degree of flexibility across the top of the cabinet to work around obstructions
- Prevents hot exhaust air from wrapping over the tops of racks
- Attaches to top of rack magnetically
- Angular baffle designed for cold aisle application
- Vertical baffle is designed for hot aisle application
- Reconfigurable design allows angular or vertical configuration
- Tool-less Ceiling Panels are easy to install and remove for cleaning and provide above-the-cabinet access to cables, equipment and systems
- Clear, transparent door and roof panels provide maximum light to aisleway
- Express containment system includes magnetic mounting for quick-install
- Express containment top baffles include both hot and cold aisle configurations
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 749
- Product Family
- ProLine Containment System
- Color Code
- RAL 9005
- Sub Brand
- ProLine
- Size
- 10.90 x 29.50 x 22.50 inch
- Consist of
- Vertical baffle, fits cabinet 30-inch (750mm) wide
Height (H)277
Depth (D)572
FinishPowder Coated
Weight2
MaterialPolycarbonate/ABS/PVC
ColorJet Black, RAL 9005
