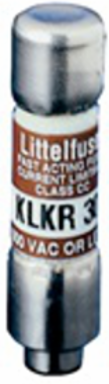

Littelfuse KLKR015 KLKR015 - KLKR Series
- MPN: KLKR015
- UPC: 079458260687
- PPN: LTF-KLKR015.T
CAD
$15.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
KLKR series Class CC fuses are fast-acting fuses intended for general-purpose branch circuit protection. Their compact size, fast-acting overload response, and their highly current limiting design make them ideal for use in OEM equipment and control panels because Solid-state devices such as SCRs and other electronic equipment generally require fast-acting protection.
Features
- Compared to other UL Listed fuses, Class CC fuses are the most current limiting, rating for rating.
- Provide superior protection in a fraction of the space required by other fuse classes. For example, when 600 V three-pole, 30 A Class R fuse blocks are replaced by Littelfuse Class CC fuse blocks, panel-mounting space is reduced approximately 70%.
- 200,000 A.I.R. — Reliable interruption of all overcurrents up to 200,000 amperes.
- Extremely current limiting — Reduces damage caused by heating and magnetic effects of short-circuit currents…stops damaging short-circuit faster than any mechanical protective device.
- Class CC fuses are the smallest 600V, 200,000 A.I.R. fuses approved for branch circuit protection.
Documentation & Downloads
Specifications
Key Specifications
- Ampere Rating (A)
- 15
- VDC (V)
- 300
- Opening
- Fast-Acting (F)
VAC (V)600
Interrupting Rating200000A@600VAC
Package SizeClass CC
