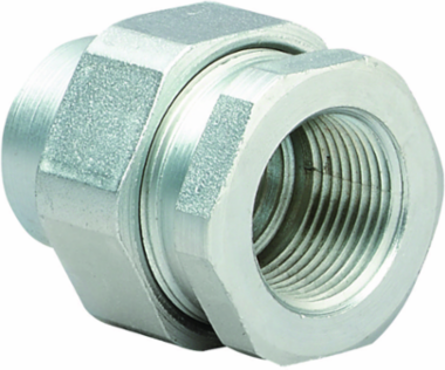

Killark UNF2-EX 3/4 Inch Iron Union - Female/Female, ATEX & IECEx Certified, Zinc Plated
Killark UNF2-EX 3/4 Inch Iron Union - Female/Female, ATEX & IECEx Certified, Zinc Plated
- MPN: UNF2-EX
- UPC: 783936072036
- PPN: HBL-UNF2-EX
- UNSPSC: 39131707
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$131.77/ EA
Description
UN Series - Iron ATEX And IECEx Certified Union - Female/Female - Hub Size 3/4 Inch
Features
- Threaded for rigid conduit or IMC
- Tapered threads (NPT)
- Strong and durable construction
- Certified QUAD LISTED
- Threaded for rigid conduit or IMC. Tapered threads (NPT). Strong and durable construction.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 2.000 in
- Height
- 2 in
- Application
- UNF unions are used to connect two pieces of conduit or attach conduit to junction boxes, fittings, or devices. Permits removal of equipment without turning or removal of conduit.
- Flexibility
- Rigid or IMC Conduit
- Length
- 2 in
- Type
- Female to Female Union
- Diameter - Inside
- 0.92 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- FE UNION,3/4" FEMAL,QUADLISTED
- Harmonization Code
- 7307923030
- Lead Time
- 10 wk
- Order Multiple
- 5 EA
- Sub Class Code
- D30D237
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Dimensions2 in x 2 in x 2 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size3/4"
ColorGlossy gray
Inside Diameter0.92 in
Special FeaturesThreaded for rigid conduit or IMC. Tapered threads (NPT). Strong and durable construction.
Width2 in
Finish TypeZinc Plated
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.5
SeriesUNF Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936072036
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
