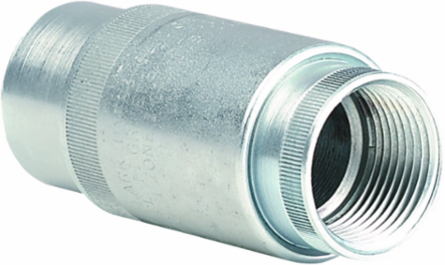

Killark UNFS1 Short Female Expansion Conduit Union 1/2 Inch, Zinc Plated, Hazardous Rated
Killark UNFS1 Short Female Expansion Conduit Union 1/2 Inch, Zinc Plated, Hazardous Rated
- MPN: UNFS1
- UPC: 783936010557
- PPN: HBL-UNFS1
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$125.74/ EA
Description
UNF Series Fittings - Expansion Conduit Unions - Female - Short - Hub Size 1/2 In
Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC
- Telescoping components allows conduit to be inserted between fixed threaded hubs
- Internal copper alloy grounding spring assures positive grounding
- Close tolerance of mating parts eliminates passage of flame
- Compact diameter allows use where conduit is closely spaced
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 5.750 in
- Application
- To provide for slight expansion and contraction of conduit runs. To retrofit sections of conduit runs.
- Finish
- Zinc Plated
- Hub Size
- 1/2"
- Special Features
- Tapered threaded hubs (NPT) for rigid conduit and IMC. Telescoping components allows conduit to be inserted between fixed threaded hubs. Internal copper alloy grounding spring assures positive grounding. Close tolerance of mating parts eliminates passage
- Width
- 5.75 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" ST EX SHORT UNION FEMALE
- Harmonization Code
- 7307199060
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.4
- Material
- Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Dimensions5.75 in x 5.75 in x 4.25 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zone 1, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorGlossy gray
Height4.25 in
Length5.75 in
TypeShort Female Expansion Conduit Union
Finish TypeZinc Plated
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesUNF Series
BOX SIZE4.250x5.750x5.750 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936010557
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
