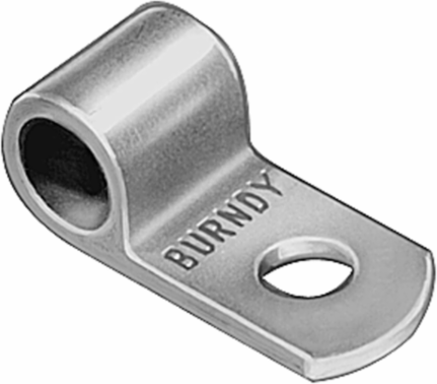

Burndy YBM26L3 Uninsulated Flag-Type Ring Terminal for 2/0 AWG, 1/2 Inch Bolt Size, Copper Material
- MPN: YBM26L3
- UPC: 781810098141
- PPN: BUR-618005
- UNSPSC: 39121405
CAD
$51.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Flag-Type Ring Terminal For 2/0 AWG.
Features
- Made of pure electrolytic copper for maximum conductivity and ductility
- Seamless extrusion tin plated to resist corrosion
- Beveled barrel for easy wire entry
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper Str Size
- 2/0
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Length Overall inch
- 1.96 in
- Dimension - Outside Diameter inch
- 0.76 in
- Dimension - Stud Size inch
- 1/2 in
- Feature - Barrel Style
- Chamfered
- Physical Attribute - Tongue Angle
- 90 Degree
- Plated
- Y
- Product Type
- TERMINAL
- Standards - RoHS Compliance Status
- CM
- Conductor Size
- 2/0 AWG
- Connector Type
- Flag Ring Terminal
- Class Code
- B57
- Harmonization Code
- 8535908020
- Lead Time
- 12 wk
- Die Index
- 598
- Material
- Copper
- BOX SIZE
- 5.125x8.438x4.063 (in)
- Carton - Number of Sub Packs
- 100
- Carton - SCC-14 Next Lower Level Sub Pack
- 00781810098141
- Case - SCC-14 Next Lower Level Sub Pack
- 30781810098142
- Package - Total Units
- 100 EA
- Pallet - GTIN - Package
- 70781810098140
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
- NAICS Code
- 3359319104
Conductor - Copper Str Aircraft SizeAN 2/0
Conductor - Copper Str Size Range2/0 AWG
Dimension - B Length inch0.84 in
Dimension - Bolt Size fraction1/2
Dimension - N inch0.48 in
Dimension - Pad Width inch0.91 in
Dimension - Z inch0.61 in
Physical Attribute - Number of Holes1
Physical Attribute - Tongue TypeRing
Plating TypeTin - Electro Plated
Standards - Industry Standards MetUL486
Trade NameHYLUG™
Conductor TypeCU C Solid-Size;CU C Str-Size
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB57BLHF
UL ListedYes
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units100
Package - GTIN - Package30781810098142
Package Quantity100 EA
Pallet Height46.750 in
Pallet Weight2201.000 lb.
Standard Package Quantity100
Certifications
- CSA Approved
- No
- ETL
- No
cULusNo
UL RecognizedNo
