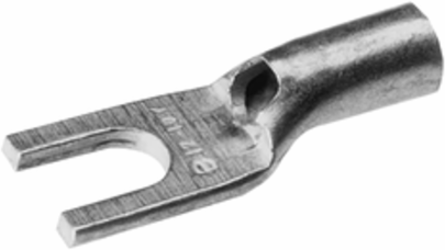

Burndy YAV18T21F Uninsulated Fork Terminal For 22 - 18 AWG
- MPN: YAV18T21F
- UPC: 781810025437
- PPN: BUR-603945
- UNSPSC: 39121405
CAD
$0.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Uninsulated Fork Terminal For 22 - 18 AWG.
Features
- Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping
- Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor
- Double thick tongue structurally a very strong terminal tongue
- Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects
- Internally bevelled barrel for easy cable entry, especially for flexible conductors
- Inspection hole provides easy visual check for proper conductor insertion
- Electro-tin plated for a long lasting durable corrosion resistance
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Conductor - Copper Str Aircraft Size Range | AN 22-AN 18 |
| Conductor - Copper Str Size Range | 22 AWG - 18 AWG |
| Dimension - B Length inch | 0.27 in |
| Dimension - D inch | 0.50 in |
| Dimension - Length Overall inch | 0.84 in |
| Dimension - Outside Diameter inch | 0.12 in |
| Dimension - Strip Length inch | 9/32 in |
| Dimension - Z inch | 0.25 in |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Product Type | TERMINAL |
| Standards - RoHS Compliance Status | CM |
| Standard | UL467 |
| Conductor Size | 22 - 18 AWG |
| Connector Type | Fork Terminal |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B57BKCF |
| Material | Copper |
| BOX SIZE | 4.625x4.313x4.313 (in) |
| Carton - Number of Sub Packs | 1000 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810025437 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810025438 |
| Package - Total Units | 1000 EA |
| Package Weight | 0.000 lb. |
| Pallet Height | 47.375 in |
| Pallet Weight | 1827.000 lb. |
| Standard Package Quantity | 1000 |
| Conductor - Copper Str Aircraft Size | AN 22;AN 20;AN 18 |
|---|---|
| Conductor - Copper Str Size | 22 AWG;20 AWG;18 AWG |
| Dimension - B Length fraction | 1/4" |
| Dimension - Bolt Size fraction | #8 - #10 |
| Dimension - L Length Overall mm | 21 mm |
| Dimension - N inch | 0.25 in |
| Dimension - Pad Width inch | 0.37 in |
| Dimension - Stud Size inch | #8;#9;#10 |
| Feature - Barrel Style | Chamfered |
| Industry Standard(s) | UL467 |
| Physical Attribute - Tongue Type | Fork |
| Plating Type | Tin - Electro Plated |
| Standards - Industry Standards Met | UL486 |
| Trade Name | HYLUG™ |
| Type | Fork Tongue |
| Conductor Type | CU C Str-Size |
| Class Code | B57 |
| Harmonization Code | 8535908020 |
| Lead Time | 199 wk |
| UL Listed | Yes |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1000 |
| Package - GTIN - Package | 30781810025438 |
| Package Quantity | 1000 EA |
| Pallet - GTIN - Package | 70781810025436 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| NAICS Code | 3359319104 |
Certifications
| CSA Approved | Yes |
|---|---|
| ETL | No |
| cULus | No |
|---|---|
| UL Recognized | No |
