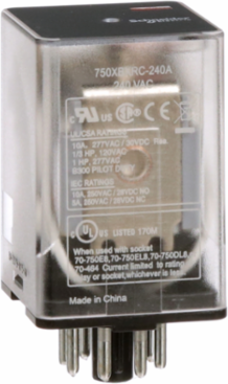

Schneider Electric 750XBXRC-240A General purpose relay, SE Relays, 750R, DPDT, 10A, 240 VAC, octal terminal 8 pins, clear cover
- MPN: 750XBXRC-240A
- PPN: SCH-750XBXRC-240A
CAD
$31.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays 750R series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with clear cover. Contacts rated as 10A at 277VAC, 1/3hp at 120VAC, 1hp at 277VAC with nominal coil voltage 240VAC , make relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States
Depth35.5 mm
Complementary Attributes
- Maximum Switching Voltage
- 300 V AC UL30 V DC UL250 V AC IEC, 28 V DC IEC
- Line Rated Current
- 10 A
- Rated Power In Hp
- 0.33 HP 120 V AC1 HP 277 V AC
Control Circuit Voltage Limits0.85...1.1 Un AC
Minimum Switching Current10 mA 17 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Vibration Resistance
- +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation, +/- 1 mm 10-35 Hz in operation3 gn 35-150 Hz in operation
- Drop-out Voltage Threshold
- >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.17001325435024067
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.5660532395409109
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Material
- silver alloy, gold flashed
- Dielectric Strength
- 2500 V AC between coil and contact2000 V AC between poles1500 V AC between contacts
- Local Signalling
- flag Cover
- Mounting Support
- plug-in
- Product Availability
- Stock - Normally stocked in distribution facility
- Resistance
- 6800 Ohm
- Shock Resistance
- 10 gn
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 39 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- 750 series, plug-in general purpose relay offeres robust and historically proven octal style mounting relay platform that provides excellent structural support with hermetically sealed for wash down conditions cover compliant with UL Class I Division 2 for Hazardous Locations Groups A, B, C, and D. Silver alloy contact 3PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits.This product will be in active mode at 25% in overall power consumption of 1.5888 W with life span of 10 years
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 69.642
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Width Nominal
- 35 mm
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL, CSA, CE, EAC
Carbon Footprint Of The Distribution Phase [A4]0.01085360977415772, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.008331958533876343, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]38 kg CO2 eq., 38.072734138972805
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2404008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Average Consumption3 VA
Contacts Type And Composition2 NC + 2 NO
Electrical Durability100000 cycles
Mechanical Durability5000000 cycles
Operating Time20 ms
Product Or Component Typeplug-in electromechanical relay
ReturnabilityYes
Software Versionv5.9.4
Switch FunctionDPDT
Pep CodeENVPEP2404008EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CN
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Height Nominal52 mm
[Ie] Rated Operational Current5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC10 A at 277 V AC (on resistive load) conforming to UL10 A at 30 V DC (on resistive load) conforming to UL10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC
Connections - Terminalsoctal terminal connector socket 8 pins)
Package Weight(Lbs)83 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 38.82798620117199
- Environmental Disclosure
- ENVPEP2404008EN
- Ip Degree Of Protection
- IP40
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2404008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2404008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
