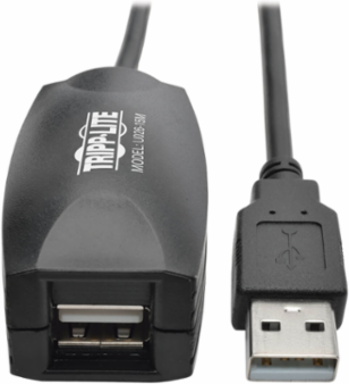

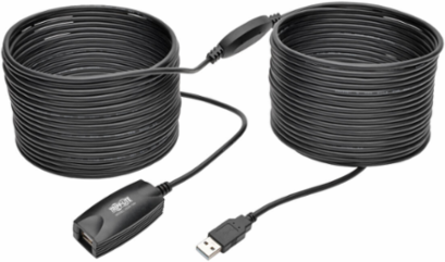

Tripp Lite U026-15M USB 2.0 Active Extension Repeater Cable, 15 m (49 ft), 480 Mbps Data Transfer
- MPN: U026-15M
- UPC: 037332199768
- PPN: TRP-U026-15M
CAD
$77.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Connects to any computer, device and/or cable with USB-A connectors to increase the length of a device cable with no decrease in signal or performance. Extends beyond the 16 ft. limit of conventional USB 2.0 cables.
Features
- Adds 49 ft. to existing USB device cable
- Supports data transfer rates up to 480 Mbps
- Built-in booster for peak USB 2.0 signal quality
- Provides up to 250mA of power to connected device
- Backward compatible with previous USB generations
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|---|
| Technology | USB 2.0 (High Speed); USB |
| Driver Required | No |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB A (MALE) |
|---|---|
| Connector Plating | Nickel |
| Side B - Connector 1 | USB A (FEMALE) |
|---|
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | ABS, PVC |
| Shipping Weight (lbs.) | 1.20 |
| Unit Weight (lbs.) | 1.1 |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.50 x 9.40 x 11.80 |
| Unit Packaging Type | Polybag |
Input
| Cable Length (ft.) | 49.2 |
|---|
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
|---|---|
| Relative Humidity | 10% to 90 % RH, Non-Condensing |
| Power Consumption (Watts) | 0.2 |
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
|---|---|
| BTUs | 0.68 BTU/Hr |
| Power Provided to Connected Device(s) | 0.25A Output per USB port |
Overview
| UPC Code | 037332199768 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
