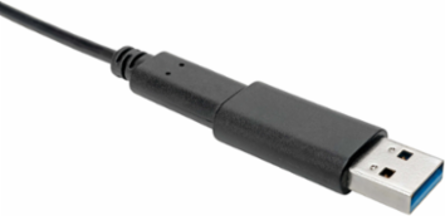

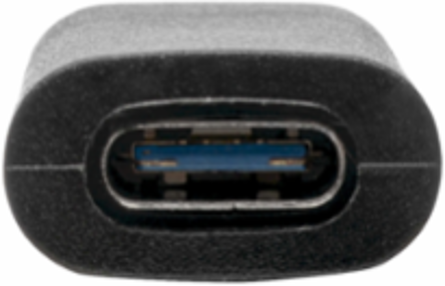

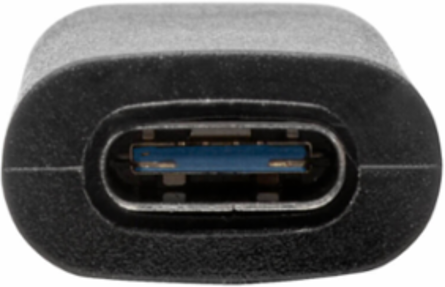

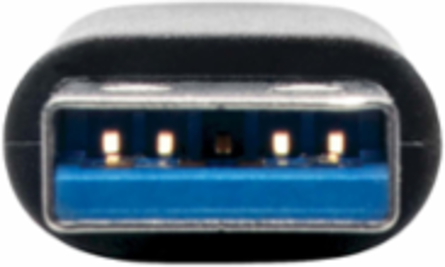

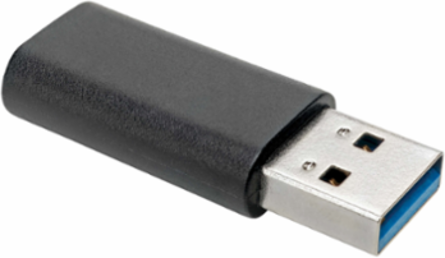

Tripp Lite U329-000 USB 3.0 SuperSpeed Adapter, USB-A Male to USB-C Female, 5 Gbps Data Transfer
- MPN: U329-000
- UPC: 037332213976
- PPN: TRP-U329-000
CAD
$16.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB 3.0 SuperSpeed Adapter, USB-A Male to USB-C Female, 5 Gbps Data Transfer
Features
- Data transfer speeds up to 5 Gbps—10 times faster than USB 2.0
- Supports power output up to 900mA
- Reversible USB-C port provides fumble-free connection
- Gold-plated contacts for maximum conductivity and minimum data loss
- Backward compatible with previous USB generations
- 3-year limited warranty
- Use Your Existing USB-A Device with a USB Type-C Cable
- Reversible USB-C Female Connector
- Premium Construction
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
|---|---|
| USB Power Delivery (PD) Charging Support | No |
| Driver Required | No |
|---|---|
| Technology | USB; USB 3.0 (SuperSpeed) |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 1 |
|---|---|
| Side B - Connector 1 | USB C (FEMALE) |
| Contact Plating | Gold |
| Side A - Connector 1 | USB A (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 5.90 x 3.90 x 0.50 |
| Unit Dimensions (hwd / in.) | 0.31 x 0.63 x 1.10 |
| Unit Weight (lbs.) | 0.01 |
| Material of Construction | PVC & UL94V-0 |
|---|---|
| Shipping Weight (lbs.) | 0.02 |
| Unit Packaging Type | Polybag |
User Interface, Alerts & Controls
| LED Indicators | N/A |
|---|
Input
| Bus Powered | Yes |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Power Provided to Connected Device(s) | 5V, 0.9A |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332213976 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
