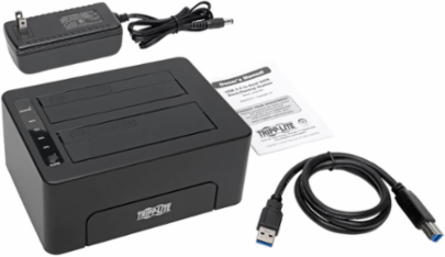

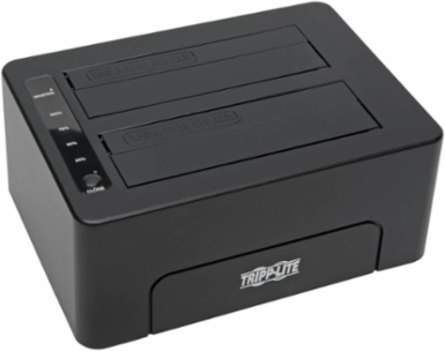

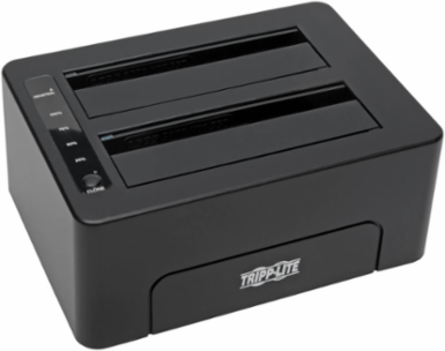

Tripp Lite U339-002 USB 3.0 Dual SATA Hard Drive Docking Station, Cloning for 2.5 Inch/3.5 Inch Drives
- MPN: U339-002
- UPC: 037332181299
- PPN: TRP-U339-002
CAD
$107.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SuperSpeed ( 5Gbps ) Data Transfer over USB 3.0
Features
- Read and Write to two drives simultaneously
- Supports 2.5" or 3.5" SATA drives up to 6TB
- Docking functionality compatible with Windows, MAC, and Linux systems
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
|---|---|
| UASP Support | Yes |
| Driver Required | No |
|---|---|
| Technology | USB 3.0 (SuperSpeed); SATA/eSATA; USB |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|

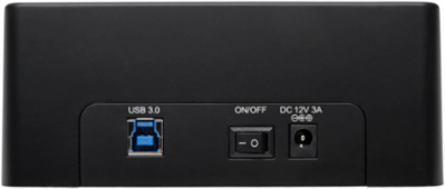

Connections
| Ports | 2 |
|---|---|
| Side B - Connector 1 | (2) 22 PIN SATA + POWER (FEMALE) |
| Side A - Connector 1 | USB 3.0 A (MALE) |
|---|---|
| Connector Plating | Nickel |
Physical
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 2.70 x 6.30 x 8.00 |
| Unit Dimensions (hwd / in.) | 2.4 x 6 x 4.4 |
| Unit Weight (lbs.) | 0.9 |
| Material of Construction | ABS |
|---|---|
| Shipping Weight (lbs.) | 1.70 |
| Unit Packaging Type | Box |
User Interface, Alerts & Controls
| LED Indicators | Red (Read, Write, Power); Blue (Clone) |
|---|
Input
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
|---|---|
| External Power Supply Output Specs (V / A) | 12V / 3A |
| External Power Supply Cord Length (m.) | 1.5 |
| External Power Supply Plug(s) | NEMA 1-15P North America |
| Bus Powered | No |
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1.5A |
|---|---|
| External Power Supply Cord Length (ft.) | 4.9 |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 10mm, Positive Pin, Negative Sleeve |
| External Power Supply Certifications | FCC; UL; cUL; RoHS |
Environmental
| Operating Temperature Range | 50 to 122 F (10 to 50 C) |
|---|---|
| Relative Humidity | 10% to 80% RH, Non-Condensing |
| Power Consumption (Watts) | 36 |
| Storage Temperature Range | 32 to 149 F (0 to 65 C) |
|---|---|
| BTUs | 122.8 BTU/Hr |
Overview
| UPC Code | 037332181299 |
|---|
| AC Adapter | Input: 100-240V, 50/60Hz, 1.5A; Output: 12V, 3A |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
