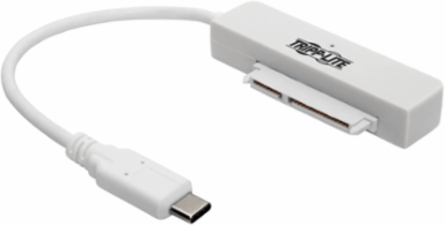

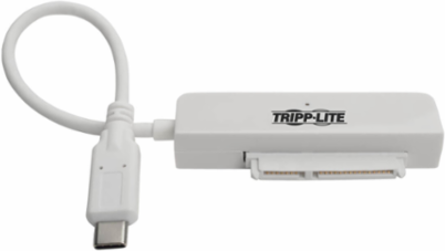

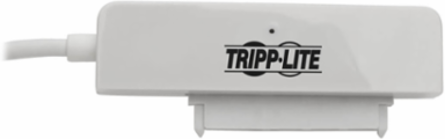

Tripp Lite U438-06N-G1-W USB-C to SATA III 2.5 Inch Adapter Cable, 5 Gbps, UASP Supported, White
- MPN: U438-06N-G1-W
- UPC: 037332199430
- PPN: TRP-U438-06N-G1-W
CAD
$12.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

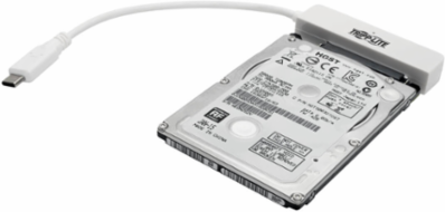

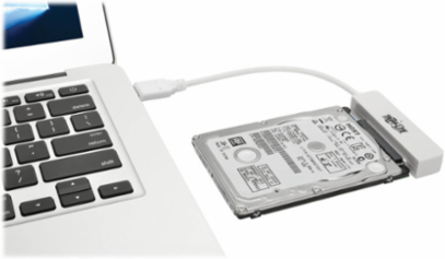

Connects a 2.5 in. SATA HDD or SSD to your laptop, tablet, Chromebook or computer’s USB Type-C or Thunderbolt™ 3 port for extra storage, quick disk formatting and fast data transfer.
Features
- Supports USB 3.1 data transfer rates up to 5 Gbps
- Works up to 70% faster when connected to UASP host controller
- Compatible with SATA HDDs and SSDs up to 4 TB
- Plug-and-play—no external power supply required
- Compatible with all USB-enabled operating systems
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- UASP Support
- Yes
Driver RequiredNo
TechnologySATA/eSATA; USB; USB 3.1 (Gen 1)
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 1
- Side B - Connector 1
- 22 PIN SATA + POWER (FEMALE)
Side A - Connector 1USB C (MALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- ABS
- Shipping Weight (lbs.)
- 0.06
- Unit Packaging Type
- Polybag
ColorWhite
Shipping Dimensions (hwd / in.)0.50 x 4.25 x 7.00
Unit Dimensions (hwd / in.)0.5 x 2.8 x 0.71
Unit Weight (lbs.)0.05
User Interface, Alerts & Controls
- LED Indicators
- Blue (Read, Write, Power)
Input
- Bus Powered
- Yes
Product Length (in.)6
Environmental
- Operating Temperature Range
- 50 to 122 F (10 to 50 C)
- Relative Humidity
- 10% to 80% RH, Non-Condensing
- Power Consumption (Watts)
- 5
Storage Temperature Range32 to 149 F (0 to 65 C)
BTUs17.1 BTU/Hr
Overview
- UPC Code
- 037332199430
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
